Overview

This wiki presents performance results for different applications on AGX Orin, Thor T5000 (AGX), and Thor T4000. The values were obtained under the following conditions:

• Maximum performance mode enabled (all cores active and Jetson clocks enabled)
• Base system installation
• CPU and RAM usage measured using PID/STATUS
• Framerate measured using GstPerf
• GPU usage measured with nvidia-smi on Jetson Thor and tegrastats on Orin

TL;DR

This section is organized as follows:

• DeepStream
• Encoding and Decoding
• RidgeRun's Video Stitching
• RidgeRun's Birds Eye View
• RidgeRun's QtOverlay

DeepStream Performance

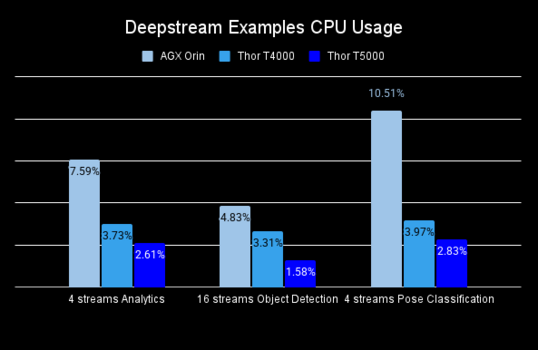

CPU Usage

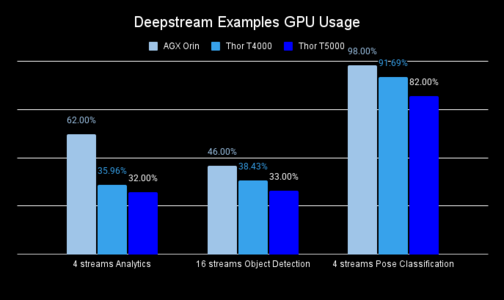

GPU Usage

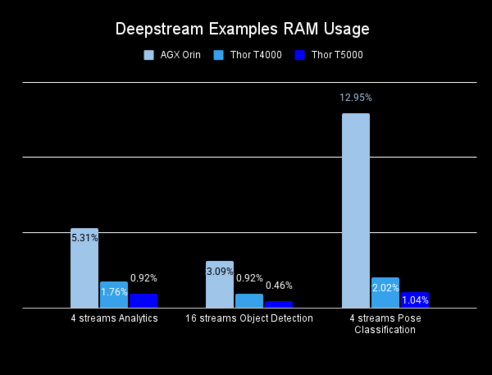

RAM Usage

Encoding and Decoding Performance

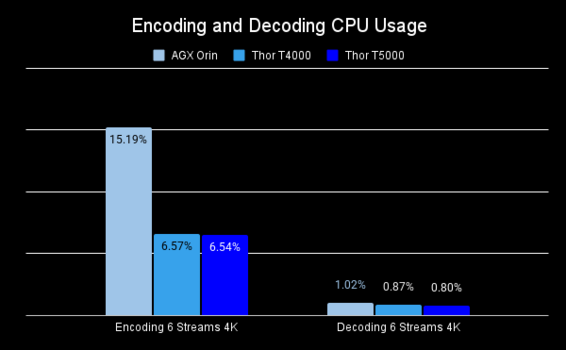

CPU Usage

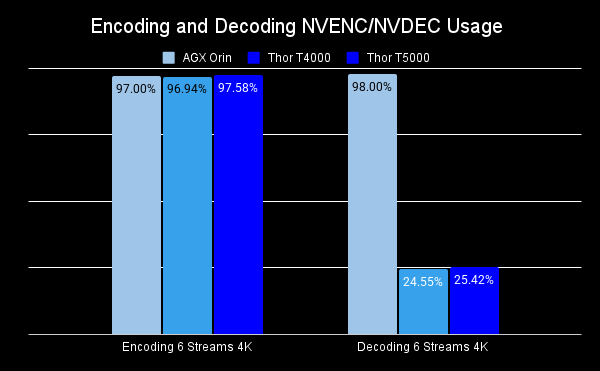

NVDEC/NVENC Usage

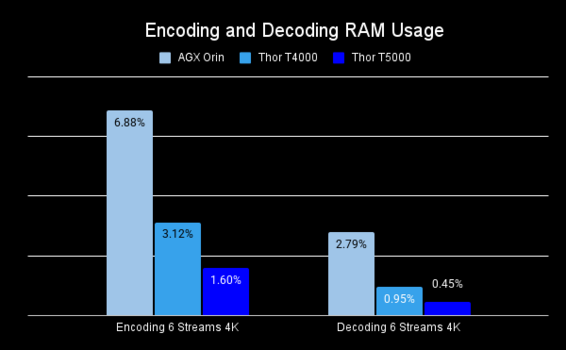

RAM Usage

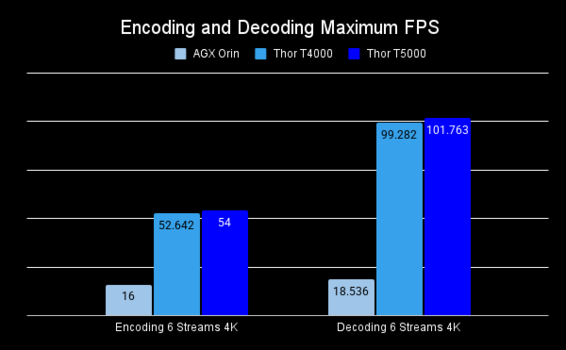

Maximum Framerate

RidgeRun's Video Stitching Performance

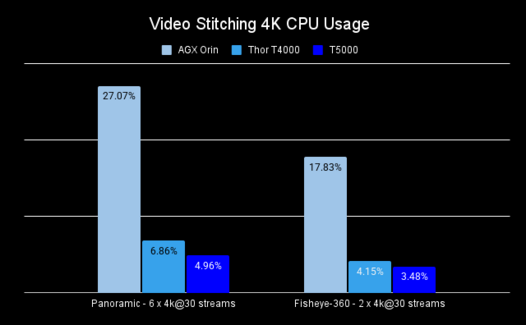

CPU Usage

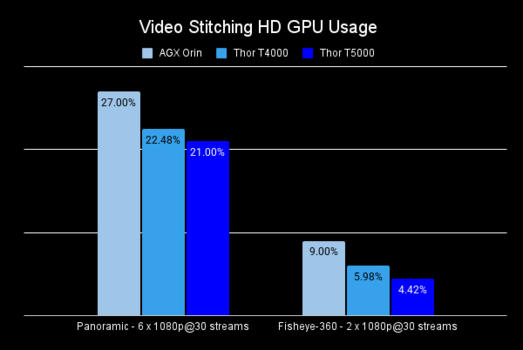

GPU Usage

\

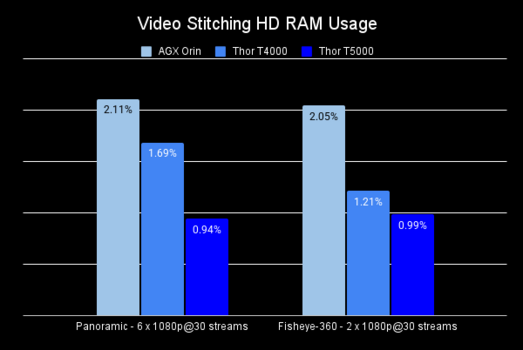

RAM Usage

Maximum Framerate

RidgeRun's Birds Eye View Performance

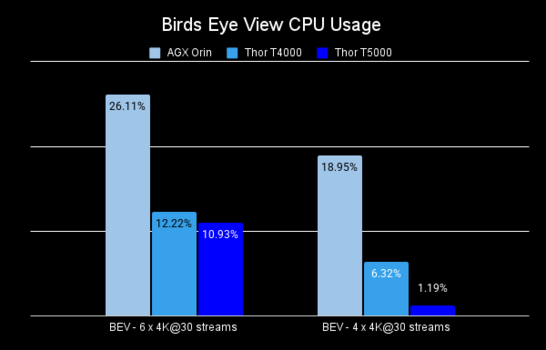

CPU Usage

GPU Usage

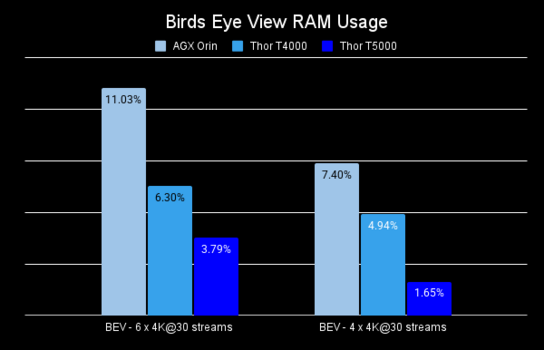

RAM Usage

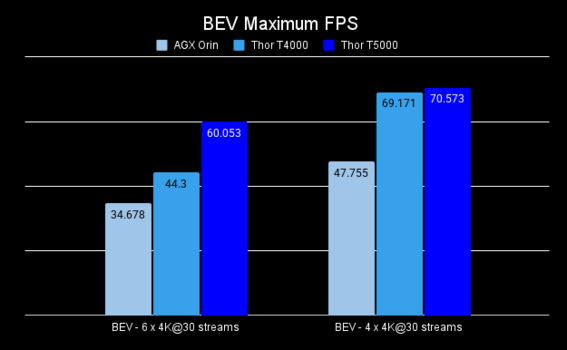

Maximum Framerate

RidgeRun's QtOverlay Performance

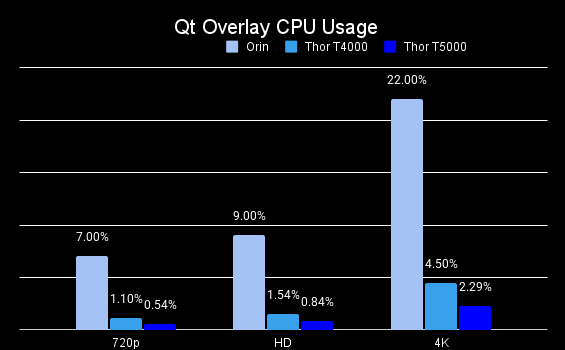

CPU Usage

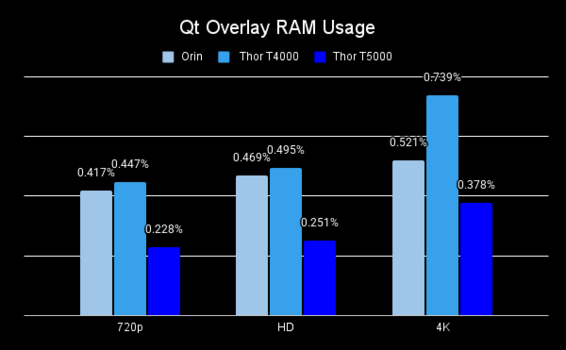

RAM Usage

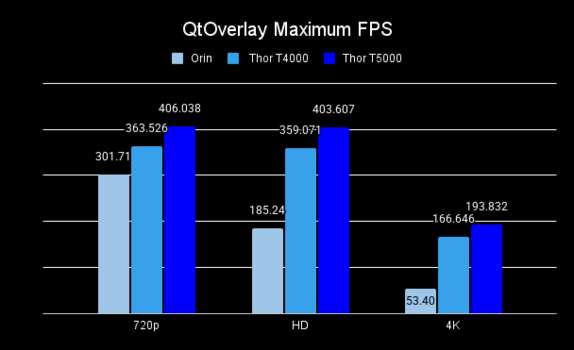

Maximum Framerate
