Syslogic A5AGX Carrier Board Support
Overview
The Syslogic AI Rugged Computer RML A5AGX is built on the high-performance T4000 and T5000 modules from the NVIDIA® Jetson Thor™ series.
NVIDIA® Jetson Thor™ series modules unlock real-time reasoning for general robotics and physical AI, delivering up to 2070 FP4 TFLOPS of AI compute and 128 GB of memory with power configurable between 40 W and 130 W. They deliver over 7.5x higher AI compute than NVIDIA AGX Orin™, with 3.5x better energy efficiency. This enables advanced autonomous control for vehicles, machinery, and robotics.
Syslogic’s ruggedized design ensures that the new Jetson Thor™ series can be deployed in harsh environments. The AI Rugged Computer RML A5AGX meets demanding shock and vibration requirements and features an IP67/IP69 protection-class housing, making it ideal for 24/7 use in construction and agricultural machinery.
Spec List

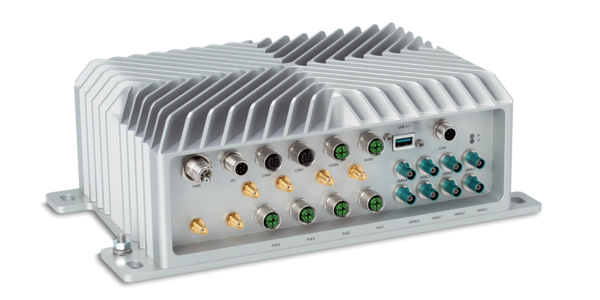

AI Rugged Computer RPC RML A5AGX
- NVIDIA Jetson Thor T4000™, up to 1200 FP4 TFLOPs
- NVIDIA Jetson Thor T5000™, up to 2070 FP4 TFLOPs
- 100/1000 BASE-T1 Single Pair Ethernet with 4 dedicated NIC’s
- 2x 10Gbit Ethernet
- 8x GMSL2 camera inputs, with Power over Coax
- 2x CAN 2.0A/B, CAN FD support, isolated (optionally up to 6 CAN ports available)
- 1x USB 3.2 (Type-A, IP67 rated)
- Cellular 5G, GNSS & WiFi7
- Industrial grade NVMe SSD storage up to 2TB

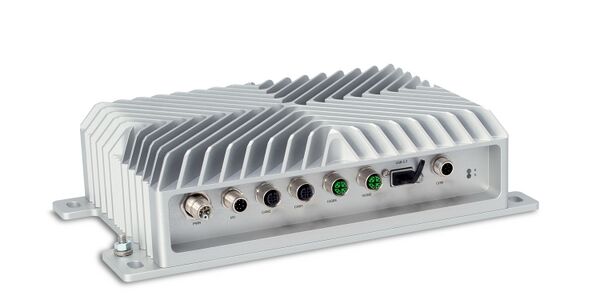

AI Rugged Computer RPC RSL A5AGX
- NVIDIA Jetson Thor T4000™, up to 1200 FP4 TFLOPs
- NVIDIA Jetson Thor T5000™, up to 2070 FP4 TFLOPs
- 2x 10Gbit Ethernet, M12, x-coded
- 2x CAN 2.0A/B, CAN FD support, isolated
- 1x USB 3.2 (Type-A, IP67 rated)
- 1x RS232
- Cellular 5G, GNSS & WiFi
- Industrial grade NVMe SSD storage up to 2TB
You can get this board from the Product Page.
