Benchmark environment

The following setup was used for all the benchmarks:

• Verdin NXP i.MX95
• Toradex manifest with BSP version 7

Benchmarking

Instruments:

• CPU: top command
• RAM: top command
• GstPERF: perf plugin

Replicate the Results

The following pipelines were used to measure the performance.

Kernel CSC

gst-launch-1.0  v4l2src device=/dev/video6 ! video/x-raw,format=YUY2
,width=1920,height=1080,framerate=30/1 ! queue ! imxvideoconvert_g2d ! video/x-raw,format=RGBA  ! queue ! ispclcsc ! perf print-cpu-load=true ! fakesink -v

Performance Results

CPU

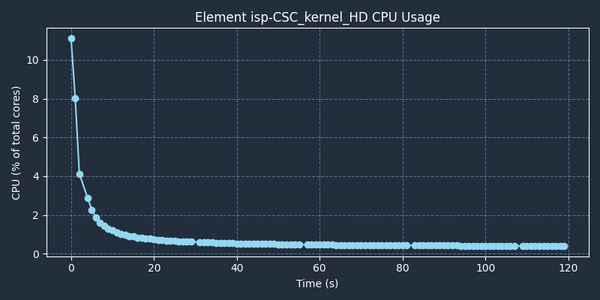

The following image shows the CPU performance.

RAM

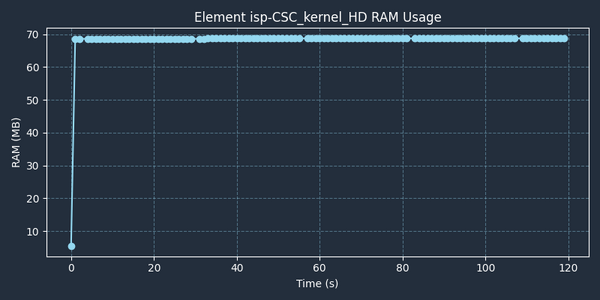

The following image shows the RAM usage.

Framerate

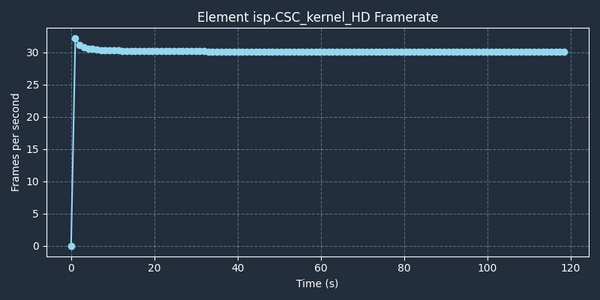

The following image shows the average framerate.

Summary

The following table summarize the results.

CODEC	CPU (%)	RAM (MB)	RAM (%)	FPS
Kernel CSC	0.778	68.176	0.883	29.941
