The GStreamer Based Image Signal Processor element can be easily incorporated into any pipeline. Here we present some sample pipelines for different use cases.

Debayer plugin pipelines example

For this pipeline example the ispcldebayer element will transform the buffer from bayer format to RGBA format

WIDTH=1920
HEIGHT=1080

gst-launch-1.0 -e -v \
  videotestsrc pattern=colors is-live=true num-buffers=300 ! \
  "video/x-bayer,format=bggr,width=$WIDTH,height=$HEIGHT,framerate=30/1" ! \
  queue ! \
  ispcldebayer ! \
  videoconvert ! \
  v4l2h264enc ! \
  h264parse ! \
  matroskamux ! \
  filesink location=debayer_output.mkv

Got this result:

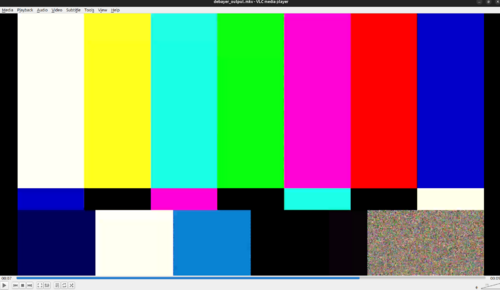

default pattern

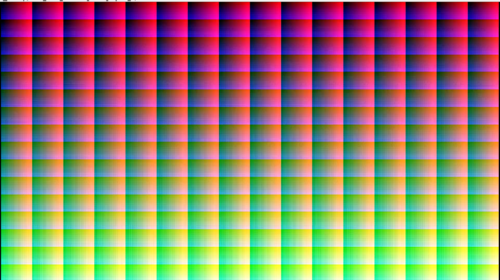

pattern=colors
