Benchmark environment

The following setup was used for all the benchmarks:

• Verdin NXP i.MX95
• Toradex manifest with BSP version 7

Benchmarking

Instruments:

• CPU: top command
• RAM: top command
• GstPERF: perf plugin

Replicate the Results

The following pipeline was used to measure the performance.

gst-launch-1.0 v4l2src device=/dev/video6 ! video/x-raw,format=YUY2,width=1920,height=1080,framerate=30/1 ! queue  max-size-buffers=3 leaky=downstream ! imxvideoconvert_g2d ! v4l2h264enc ! h264parse ! perf ! rrbrowsersink port=8080 reliable=false

Performance Results

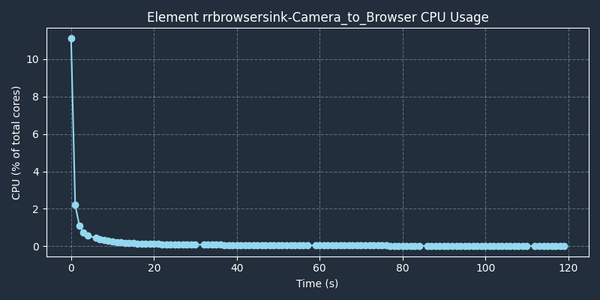

CPU

The following image shows the CPU performance.

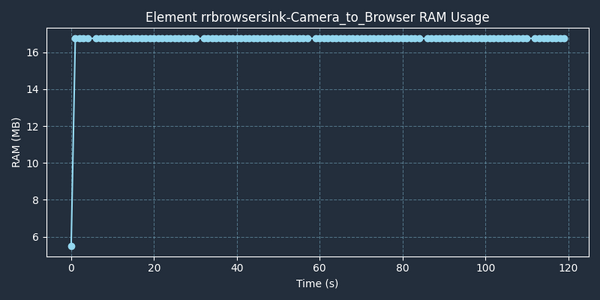

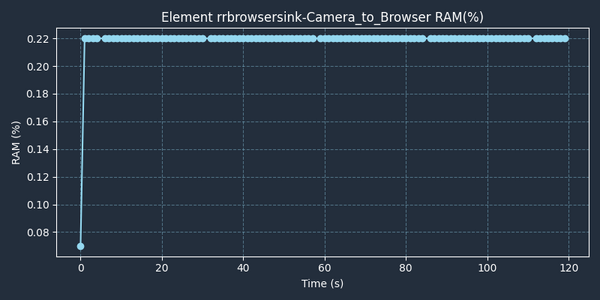

RAM

The following images show the RAM usage.

Summary

The following table summarize the results.

CPU (%)	RAM (MB)	RAM (%)
0.204	16.662	0.219

<
