PVA ISP for NVIDIA Jetson: Programmable Image Signal Processing
RidgeRun PVA ISP is a configurable Image Signal Processing (ISP) solution for NVIDIA Jetson platforms, designed for engineers who need greater control over their image processing pipeline without relying on NVIDIA Argus.By leveraging NVIDIA's Programmable Vision Accelerator (PVA), RidgeRun PVA ISP enables configurable image processing operations without consuming GPU resources for the ISP pipeline, preserving GPU compute capacity for AI inference, computer vision, and other workloads.
RidgeRun PVA ISP provides an alternative to both the NVIDIA Argus ISP pipeline and CUDA-based image processing solutions for developers building custom camera and vision applications on Jetson.

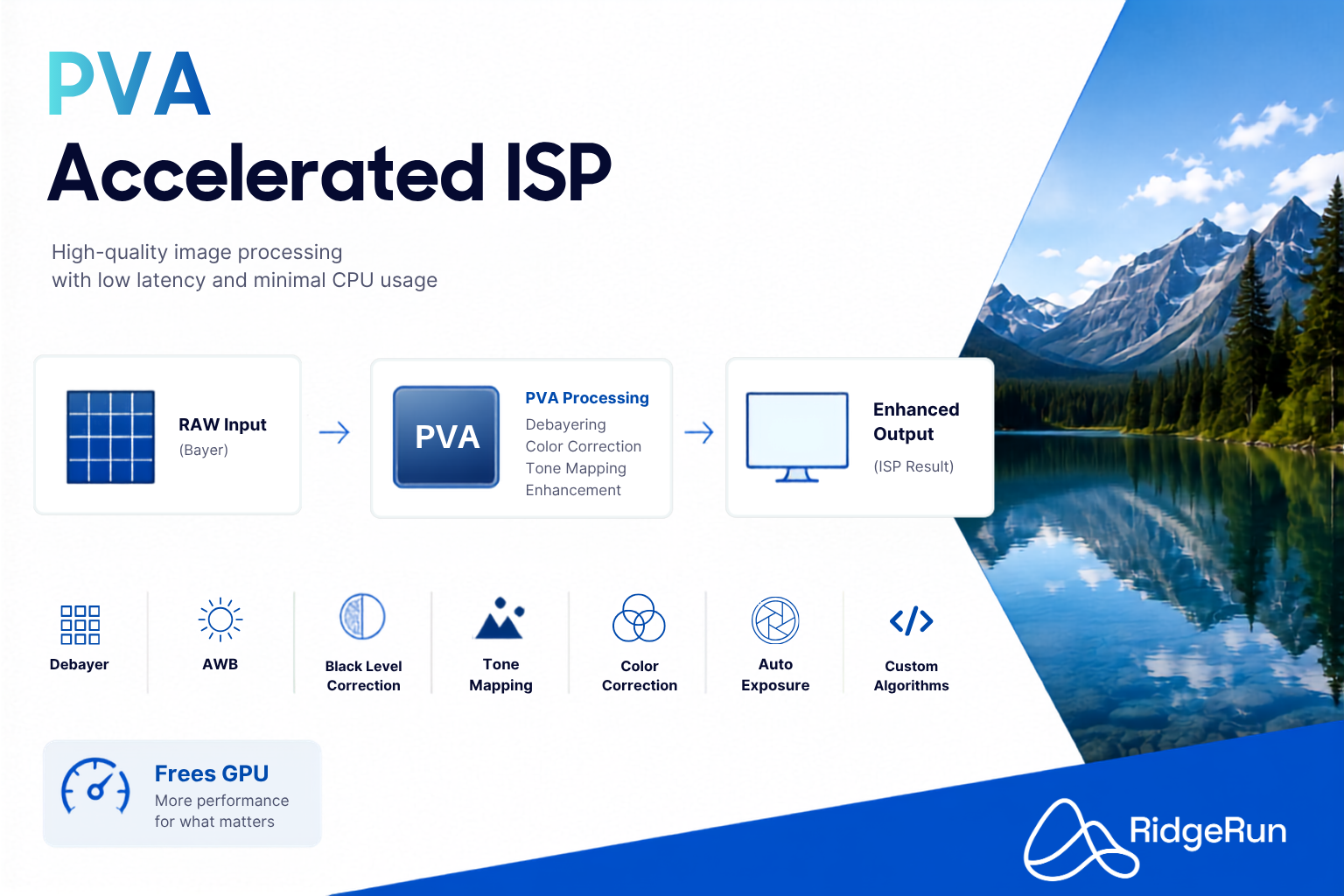

The pipeline includes key ISP stages such as demosaicing, anti-aliasing, auto white balance,
black level correction, decompanding, convolution, gamma tone mapping, histogram calculation,
NV12 conversion, global tone mapping, and auto exposure.
By executing these operations on the PVA, RidgeRun's PVA ISP offers a low-power,
hardware-accelerated alternative for real-time camera applications that require flexibility,
performance, and control over the image processing workflow.
RidgeRun's PVA ISP can be integrated through GStreamer for fast prototyping and pipeline-based applications,
or through the C++ API for deeper product customization and direct control over ISP behavior.
RidgeRun PVA ISP Performance Highlights
RidgeRun PVA ISP delivers real-time image processing on NVIDIA Jetson while preserving GPU resources for AI and computer vision workloads. On Jetson AGX Orin, live-camera benchmarks for Bayer to NV12 conversion achieved 61.57 FPS at 1080p with 7.89 ms average ISP processing time, and 34.24 FPS at 4K with 26.80 ms processing time, both with 0% reported GPU utilization in pipelines without display output. Additional file-fed benchmarks reached 133.67 FPS at 1080p and 39.83 FPS at 4K in MAXN mode. These measurements demonstrate the potential of PVA-accelerated ISP for Jetson applications that need configurable image processing without dedicating GPU compute resources to the ISP pipeline.
Explore the performance benchmarks, latency measurements, and test configurations.
Explore the guide
This wiki provides technical documentation, integration guides, examples, and reference material to help developers evaluate, integrate, and optimize RidgeRun PVA ISP on NVIDIA Jetson platforms. Its goal is to reduce the learning curve and help teams move faster from initial evaluation to production-ready camera pipelines. Not sure where to start or looking for a specific topic? Explore the sections below.
ISP Algorithms, Debugging & Profiling,
Custom development.
Use the table of contents for the full page list, and use these step cards as the primary end-to-end path through the workflow
RidgeRun NVIDIA Jetson ISP Development and Support
With over 20 years of experience in embedded Linux and computer vision development, RidgeRun is an NVIDIA Jetson Preferred Partner specializing in camera integration, image signal processing (ISP), and hardware-accelerated vision pipelines. Our engineers help companies develop and optimize NVIDIA Jetson solutions, from camera sensor drivers, V4L2 integration, and GStreamer pipelines to custom ISP algorithms, real-time image processing, and production deployment.
RidgeRun's expertise spans the NVIDIA Jetson camera and multimedia stack, including NVIDIA Argus, CUDA, the Programmable Vision Accelerator (PVA), and hardware-accelerated image processing. Through solutions such as RidgeRun PVA ISP, we help engineering teams build configurable ISP pipelines, overcome limitations of conventional camera processing workflows, and offload image processing from the GPU to preserve compute resources for AI inference and computer vision applications.
Whether you need an alternative to NVIDIA Argus, custom ISP operations, multi-camera integration, or performance optimization on NVIDIA Jetson, RidgeRun can help your team design, integrate, validate, and deploy an image processing solution tailored to your product requirements. Contact RidgeRun to discuss your NVIDIA Jetson ISP development needs.
FAQ
- Can I perform image signal processing on NVIDIA Jetson without Argus?
- Yes. RidgeRun PVA ISP provides an alternative to the NVIDIA Argus image processing pipeline by executing configurable ISP operations on the NVIDIA Programmable Vision Accelerator (PVA). It processes supported Bayer RAW image buffers without requiring Argus for ISP operations. This gives developers greater control over image processing stages, tuning parameters, and intermediate results. A compatible camera capture path is still required to supply the RAW buffers. See ISP alternatives for NVIDIA Jetson.
- What are the advantages of PVA ISP compared with NVIDIA Argus and CUDA-based ISP pipelines?
- NVIDIA Argus provides access to the integrated hardware ISP and offers a mature camera processing ecosystem, but exposes limited control over internal ISP operations. CUDA-based ISP implementations provide extensive customization while consuming GPU resources that may also be needed for AI inference or computer vision. RidgeRun PVA ISP combines configurable image processing with dedicated PVA acceleration, allowing engineers to customize ISP stages without executing the ISP algorithms on the GPU. The best approach depends on image quality requirements, processing complexity, performance targets, and integration constraints. See ISP architecture comparison.
- Does RidgeRun PVA ISP use the NVIDIA Jetson GPU?
- RidgeRun PVA ISP executes its accelerated image processing stages on the NVIDIA PVA rather than using CUDA GPU kernels. This helps preserve GPU compute resources for neural network inference, computer vision, rendering, and other workloads. In Jetson AGX Orin live-camera benchmarks without display output, RidgeRun measured 0% reported GPU utilization while processing 1080p and 4K Bayer images. GPU activity may still occur in downstream operations, such as display rendering. See GPU utilization and performance measurements.
- What performance can RidgeRun PVA ISP achieve on NVIDIA Jetson?
- On NVIDIA Jetson AGX Orin in MAXN mode, RidgeRun measured 61.57 FPS at 1920 × 1080 with 7.89 ms average ISP processing time and 34.24 FPS at 3840 × 2160 with 26.80 ms average processing time using a live camera and Bayer-to-NV12 processing without display output. Separate file-fed tests achieved 133.67 FPS at 1080p and 39.83 FPS at 4K. These are measurements from different configurations, not guaranteed performance limits. Results depend on the Jetson platform, PVA clocks, enabled ISP stages, camera configuration, and output pipeline. See benchmark configurations and detailed results.
- Which NVIDIA Jetson platforms support RidgeRun PVA ISP?
- RidgeRun PVA ISP supports NVIDIA Jetson AGX Orin, Jetson Orin NX, and Jetson Thor. Jetson Orin Nano is not supported because it does not provide the required PVA hardware. A compatible Jetson Linux BSP and NVIDIA PVA SDK are also required. The documented project environment includes the JetPack 6.2 generation and NVIDIA PVA SDK 2.9.1; compatibility should be checked for each target platform and software release. See supported platforms and runtime requirements.
- Which image processing algorithms can developers configure?
- RidgeRun PVA ISP supports configurable processing stages including decompanding, black level correction, white balance, demosaicing, convolution, color correction, histogram generation, global tone mapping, gamma correction, and NV12 conversion. It also provides auto-exposure functionality and joined PVA kernels that combine processing stages to reduce intermediate memory transfers. Developers can select pipeline stages and configure algorithm parameters for application-specific image processing requirements. See supported ISP algorithms and configuration options.
- Can RidgeRun PVA ISP process RAW images from custom camera sensors?
- Yes. RidgeRun PVA ISP operates on supported Bayer RAW buffers and is not tied to a specific camera sensor vendor. It supports RGGB, BGGR, GBRG, and GRBG Bayer patterns with 10-, 12-, 14-, and 16-bit input data stored in 16-bit containers. Supported outputs include RGB and NV12. Camera drivers and capture integration must independently provide compatible RAW frames. Multi-exposure HDR formats requiring exposure merging, such as DOL or staggered HDR, are not currently supported. See camera and pixel format compatibility.
- Can RidgeRun PVA ISP be integrated into GStreamer and custom C++ applications?
- Yes. RidgeRun provides GStreamer integration through the
pvaispelement, enabling Bayer RAW processing within multimedia pipelines. Developers can also use the C++ API to construct and configure ISP processing stages directly in their applications. GStreamer is useful for pipeline integration and evaluation, while the C++ API provides greater control over application-specific processing workflows. See integration options and developer documentation. - Can RidgeRun help develop a custom ISP solution for an NVIDIA Jetson product?
- Yes. With more than 20 years of embedded Linux development experience and as an NVIDIA Jetson Preferred Partner, RidgeRun provides engineering services for camera integration, V4L2 drivers, GStreamer pipelines, ISP customization, image processing optimization, and product deployment. RidgeRun can help adapt ISP algorithms to product requirements, and integrate PVA-accelerated image processing into embedded vision applications. Contact RidgeRun to discuss your project requirements.
