Embedded Vision for Robotics
A technical reference for building embedded vision, perception, Edge AI, and teleoperation systems for robotics; autonomous mobile robots, inspection robots, drones, delivery systems, robotic arms, and Physical AI platforms; running on embedded hardware at the edge. It covers the reference architecture, supported platforms, RidgeRun software services and products, and application patterns, with an immersive teleoperation example.
Overview
Embedded vision and Edge AI let robots capture, process, and act on visual and spatial data directly on the robot; instead of depending on the cloud. Processing at the edge keeps latency low, improves autonomy, and allows robots to operate reliably in environments where connectivity may be limited, unstable, or unavailable.
In robotics, perception is not only about seeing. Robots must acquire data from cameras, LiDARs, IMUs, depth sensors, and other inputs; process that data in real time; understand the scene; localize themselves; make decisions; and execute actions safely.
Common application areas include:
- Autonomous navigation: Using cameras, LiDAR, IMU, and perception algorithms to support localization, mapping, obstacle detection, and path planning.
- Inspection and monitoring robots: Capturing visual data in industrial, infrastructure, energy, agricultural, or hazardous environments.
- Drones and mobile robots: Running perception, stabilization, tracking, and streaming pipelines on embedded platforms.
- Teleoperation and remote control: Delivering low-latency video and reliable command channels for operators controlling robots remotely.
- Robotic arms and manipulation: Using vision to detect objects, estimate position, guide grasping, sorting, assembly, or pick-and-place tasks.
- Physical AI systems: Combining Edge AI, perception, and real-time control for robots that sense, decide, and act in the physical world.
System Architecture

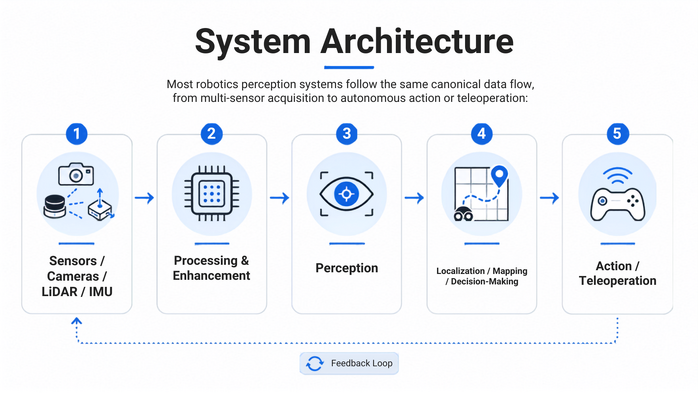

Most robotics perception systems follow the same canonical data flow, from multi-sensor acquisition through to autonomous action or teleoperation:
A typical architecture includes two related paths:
- Autonomy path: Camera / LiDAR / IMU → GStreamer / ROS 2 acquisition → AI / CV perception → localization and mapping → decision-making → robot control
- Teleoperation path: Camera / multi-camera / 360° video → encode → WebRTC / RTSP → browser or VR interface → operator command → ROS 2 robot runtime → control execution
Example (Immersive Teleoperation)
The system allows an operator to remotely control a robot while receiving low-latency visual feedback through a browser-based web interface or an immersive VR headset. This type of architecture is useful for inspection robots, mobile robots, remote research platforms, hazardous-environment robotics, and field robots that require human supervision.
RidgeRun Immersive Teleoperation is designed as a modular platform that integrates a ROS 2–based robot backend with video streaming and web/VR operator interfaces. It supports remote robot control, low-latency video streaming, single-camera and multi-camera setups, 360-degree panoramic video, camera selection, gimbal control, and safety mechanisms such as authority enforcement and heartbeat-based monitoring.
For a deeper technical reference on this example, see RidgeRun Immersive Teleoperation.
Technical Reference and Engineering Requirements
A reference implementation for a robotics teleoperation and perception system that combines camera capture, robot-side ROS 2 integration, low-latency video streaming, operator interfaces, and reliable command channels. The architecture generalizes across mobile robots, inspection platforms, drones, research robots, and Physical AI systems.
The teleoperation system allows a remote operator to connect to a robot, view live video, select camera feeds, and send control commands through a web or VR interface. The robot-side runtime receives commands, enforces control authority, and forwards approved commands to the robot driver through ROS 2.
- Sensor and video acquisition: camera capture, multi-camera input, and optional 360° panoramic video.
- Robot-side runtime: ROS 2–based software that coordinates camera capture, video streaming, and hardware control.
- Video transport: low-latency WebRTC or RTSP streaming for browser and VR interfaces.
- Operator interface: browser-based UI or VR headset for live view, robot control, camera selection, and situational awareness.
- Control and safety: reliable command channels, heartbeat monitoring, authority enforcement, and robot driver integration.
System Architecture

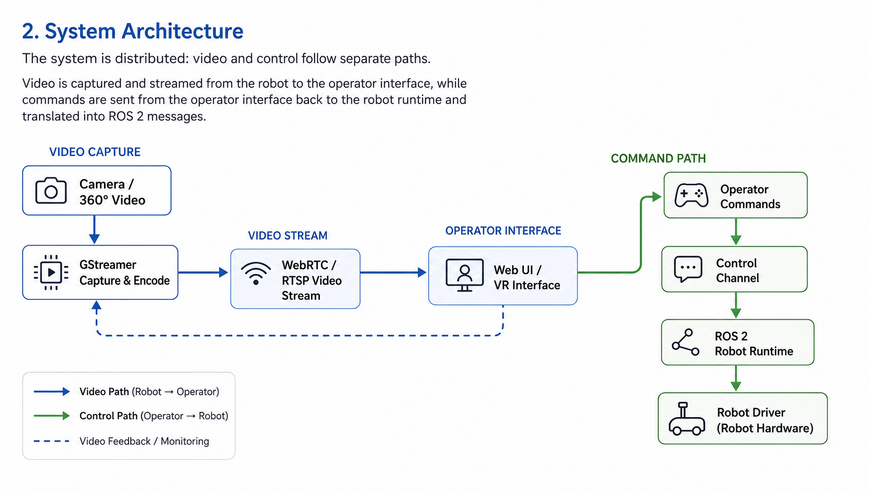

The system is distributed: video and control follow separate paths. Video is captured and streamed from the robot to the operator interface, while commands are sent from the operator interface back to the robot runtime and translated into ROS 2 messages.
Software Components
| Component | Role | Technology |
|---|---|---|
| Camera acquisition | Capture one or more robot camera feeds | GStreamer, V4L2, RTSP, camera drivers |
| Multi-camera / 360 video | Provide wider situational awareness for remote operation | Image stitching, panoramic video, WebRTC |
| Robot runtime | Coordinate video, control, and robot-side logic | ROS 2, robot driver integration |
| Operator web interface | Control and monitor the robot from a browser | Web frontend, WebRTC client |
| VR interface | Provide immersive control and spatial awareness | VR headset interface, RTSP / 360 video |
| Video transport | Stream low-latency live video to the operator | WebRTC, RTSP, GStreamer BrowserSink |
| Control channel | Send commands from UI to robot runtime | Reliable command path, ROS 2 messages |
| Safety mechanisms | Prevent unsafe or conflicting control behavior | Authority enforcement, heartbeat monitoring |
| Pipeline profiling | Measure and optimize latency and bottlenecks | GstShark, GStreamer tooling |
Workflow
- Connection: The operator opens the web or VR interface and connects to the robot runtime.
- Video acquisition: The robot captures video from one or more cameras.
- Video streaming: The video stream is encoded and delivered to the operator interface through WebRTC or RTSP.
- Operator control: The operator sends movement, camera, or gimbal commands from the UI.
- Command validation: The robot-side runtime enforces authority, heartbeat, and safety checks.
- ROS 2 execution: Approved commands are translated into ROS 2 messages and forwarded to the robot driver.
- Robot action: The robot executes motion or camera-control actions.
- Feedback loop: The operator receives updated live video and system status for continuous control.
Technical Requirements
Building this system reliably requires addressing the following areas.
Compute platform
The robot needs an embedded compute platform capable of handling camera capture, video encoding, ROS 2 runtime processes, control logic, and optional AI perception concurrently. NVIDIA Jetson platforms are common for this type of workload because they combine embedded GPU acceleration, hardware video encoding, and robotics/AI software support.
Camera and sensor integration
Robotic systems may require single-camera, multi-camera, depth-camera, LiDAR, IMU, or 360° video inputs. The system must address camera driver integration, sensor synchronization, stable image capture under motion and vibration, exposure and image quality tuning, camera selection, and optional gimbal control.
ROS 2 architecture
The robot-side runtime needs a clean ROS 2 architecture for command handling, sensor input, robot-state reporting, and hardware-driver communication. The architecture should separate video capture and streaming, robot control commands, safety checks, hardware drivers, and telemetry reporting.
Video streaming and latency
Teleoperation depends on low-latency video. The system should define a latency budget for camera capture, encoding, network transport, browser or VR rendering, and operator command round-trip.
Multi-camera and 360° video
For inspection, mobile robotics, and VR teleoperation, multi-camera and 360° video improve situational awareness. Panoramic stitching and WebRTC reference designs can be used to create real-time immersive views.
Control reliability and safety
The command path must include authority control, heartbeat monitoring, emergency stop behavior, safe defaults on disconnect, motion limits, hardware constraints, and operator-visible error reporting.
Perception and Edge AI
For semi-autonomous or autonomous robotics, teleoperation can be extended with object detection, tracking, segmentation, obstacle detection, point cloud processing, scene understanding, and AI-assisted operator alerts.
Deployment and lifecycle
Production robotics systems require reproducible Linux/Yocto builds, BSP customization, device drivers, secure boot, OTA and delta updates, logging, telemetry, remote diagnostics, profiling, and performance tuning.
From Demo to Robotics Use Cases
- Industrial inspection robots: remote inspection in factories, energy facilities, mines, pipelines, or hazardous environments.
- Autonomous mobile robots: warehouse, logistics, delivery, or indoor navigation systems.
- Drones and field robots: aerial or ground robots for agriculture, infrastructure, construction, or public safety.
- Robotic arms and manipulation: pick-and-place, sorting, assembly, lab automation, or inspection tasks.
- Research and education robots: robotics platforms requiring flexible ROS 2, video, and AI integration.
- VR-based remote operation: immersive control for robots in remote, dangerous, or difficult-to-access environments.
- Physical AI systems: robots that combine perception, AI inference, decision-making, and real-world action.
Moving from demo to production typically adds ruggedized hardware, multi-sensor synchronization, formal safety constraints, network resilience, fleet update mechanisms, remote diagnostics, hardware-specific optimization, and deployment-specific validation.
RidgeRun Technologies
| Need | RidgeRun Technology |
|---|---|
| Robot-side embedded software | BSP, Yocto, and driver development |
| Camera and sensor integration | V4L2, SerDes, camera drivers, GStreamer capture pipelines |
| ROS-based teleoperation | RidgeRun Immersive Teleoperation, ROS 2 robot runtime |
| Browser-based robot control | RidgeRun Immersive Teleoperation Web Interface |
| VR teleoperation | RidgeRun Immersive Teleoperation VR Interface |
| Low-latency video streaming | GStreamer BrowserSink, GstWebRTC, GstRtspSink |
| Multi-camera / 360 video | Image Stitching, Panoramic Stitching and WebRTC reference designs |
| Perception and AI | DeepStream/TensorRT integration, RidgeRun.ai, Computer Vision Solutions |
| Pipeline orchestration | GStreamer Daemon, GstInterpipe |
| Latency and bottleneck profiling | GstShark, GstPerf |
| Embedded acceleration | GstCUDA, hardware-accelerated GStreamer pipelines |
| Field deployment | Yocto, OTA/delta updates, Linux optimization, platform tuning |
Reference and Resources
- RidgeRun — Robotics and Embedded Systems
- RidgeRun Developer Wiki
- RidgeRun Immersive Teleoperation
- RidgeRun GStreamer Browser Sink
- GstWebRTC / GstRtspSink
- GStreamer Daemon · GstInterpipe · GstShark
- Image Stitching
- DeepStream / R2Inference/Supported backends/TensorRT
- RidgeRun.ai
- NVIDIA Jetson Orin / Jetson Thor documentation
- ROS 2
Build robotics systems ready for real-world autonomy and remote operation.
From camera, LiDAR, and sensor integration to ROS 2 development, Edge AI, low-latency streaming, teleoperation, and embedded platform optimization, RidgeRun helps robotics teams move from prototype to production-ready systems with lower risk and faster development.
Contact RidgeRun to discuss your robotics project.
FAQ
How does Edge AI support robotic perception and autonomy?
Edge AI allows perception models to run locally on the robot, reducing latency and improving reliability when network connectivity is limited or unavailable. It can support object detection, tracking, segmentation, obstacle detection, point cloud processing, scene understanding, autonomous navigation, and AI-assisted operator alerts.
Can RidgeRun help integrate cameras, LiDAR, IMUs, and other robotic sensors? ÇYes. RidgeRun can help integrate single-camera, multi-camera, depth-camera, LiDAR, IMU, and 360-degree video systems. This includes camera drivers, V4L2 and SerDes integration, sensor synchronization, stable capture under motion, exposure and image-quality tuning, camera selection, and optional gimbal control.
Does RidgeRun support ROS 2-based robotics development?
Yes. RidgeRun can develop and integrate ROS 2 robot runtimes for command handling, sensor acquisition, robot-state reporting, telemetry, safety validation, and hardware-driver communication. The architecture can separate video streaming, control commands, safety mechanisms, and robot hardware integration.
Can RidgeRun build low-latency robot teleoperation systems?
Yes. RidgeRun Immersive Teleoperation supports remote robot control through browser-based and VR interfaces. The system can combine WebRTC or RTSP video streaming, camera selection, multi-camera or panoramic video, operator commands, ROS 2 integration, and robot-driver communication.
Does RidgeRun support multi-camera and 360-degree video for robotics?
Yes. RidgeRun supports image stitching, panoramic video, multi-camera synchronization, and 360-degree streaming. These technologies can provide greater situational awareness for inspection robots, autonomous mobile robots, field robotics, and immersive VR teleoperation.
How can reliability and safety be handled in a robotics control system?
A reliable control architecture can include authority enforcement, heartbeat monitoring, emergency-stop behavior, motion limits, safe defaults when communication is lost, hardware constraints, command validation, and operator-visible error reporting. Video and control paths can also be separated to improve system maintainability and reliability.
Can RidgeRun help move a robotics system from prototype to production?
Yes. RidgeRun can support BSP and driver development, Linux and Yocto customization, hardware acceleration, pipeline profiling, secure boot, OTA and delta updates, logging, telemetry, remote diagnostics, and platform-specific performance tuning. These capabilities help robotics teams transition from demonstrations to production-ready deployments.
