GStreamer RTSP streaming is the process of publishing encoded audio or video through an RTSP endpoint such as rtsp://host:8554/stream1 and consuming it from clients such as GStreamer, VLC, NVR software, or custom applications. In most projects, the best starting point is either the upstream gst-rtsp-server library when you need full application control, or GstRtspSink when you want a pipeline-native RTSP server element (rtspsink) and a shorter path to a working product.

Quick answers

What is a GStreamer RTSP server?

A GStreamer RTSP server is the server-side component that exposes one or more RTP media streams through RTSP control URLs. It handles session setup, SDP exchange, transport negotiation, and client access to the media pipeline.

Is RTSP still relevant today?

Yes. RTSP remains relevant for IP cameras, robotics, industrial vision, edge analytics, LAN video distribution, and many embedded systems where direct live playback, low overhead, and standards-based client interoperability matter.

How do I enable an RTSP stream in GStreamer?

Create or capture media, encode it if needed, packetize it for RTP, expose it through an RTSP server layer, and validate the resulting URL with a client such as playbin or rtspsrc. See GStreamer RTSP Streaming/RTSP Server Setup and Pipeline Examples for working patterns.

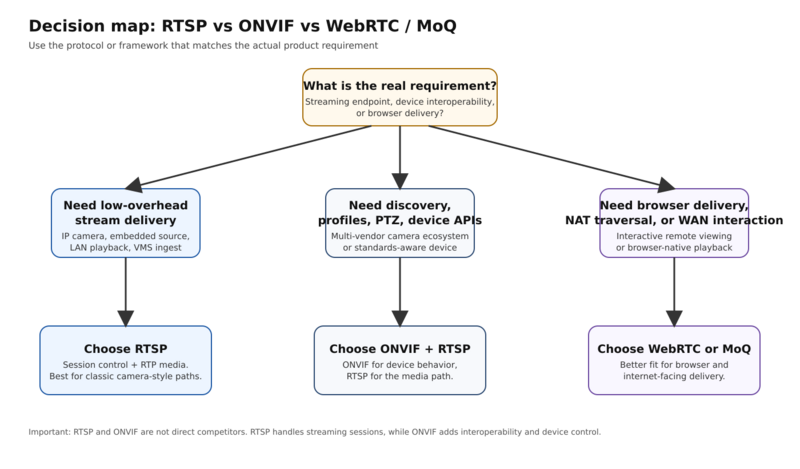

Should I choose RTSP or ONVIF?

RTSP and ONVIF solve different problems. RTSP handles live media session control and delivery. ONVIF adds device discovery, configuration, PTZ, and surveillance ecosystem interoperability. Many camera-style products need both.

RTSP and ONVIF in product design
Option	Primary role	Best fit
RTSP	Session control and media streaming	Embedded stream sources, direct playback, low-overhead live delivery
ONVIF	Device discovery and management interoperability	Cameras, encoders, VMS ecosystems, PTZ and device control
RTSP + ONVIF	Streaming plus interoperability	IP camera products, managed deployments, analytics systems

If your product is “a stream endpoint”, start with RTSP. If your product must behave like an interoperable network camera, recorder, or PTZ-capable device, evaluate Onvif Device Reference Design and Onvif device server in addition to RTSP.

What this guide covers

This wiki is designed to answer the most common developer questions around RTSP with GStreamer, including:

How to set up a basic GStreamer RTSP server pipeline.
How to stream RTSP video from a USB camera.
How to stream a local file over RTSP.
What components are used for RTSP client playback.
How to troubleshoot common RTSP connection issues.
Which commercial RTSP server solutions fit GStreamer-based products.
Where to find pre-built plugins and services for low-latency optimization.

Read this page for the concept-level answers, then continue with server setup and pipeline examples, client playback and troubleshooting, or commercial RTSP solutions and low-latency services.

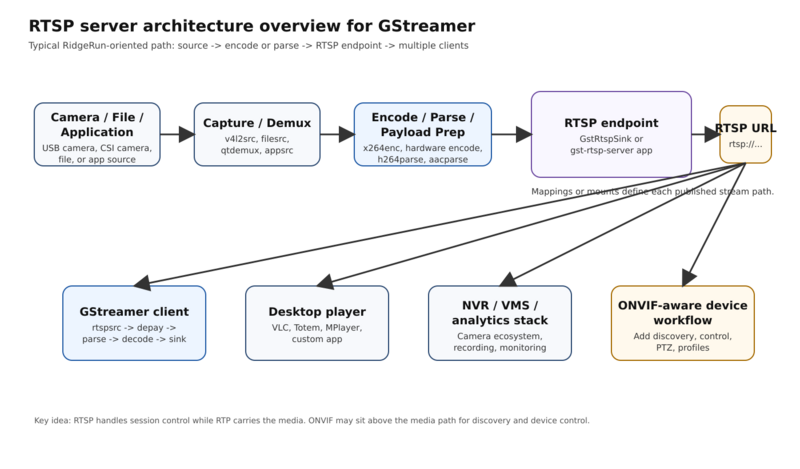

Architecture overview

A typical GStreamer RTSP deployment looks like this:

Live source or file
        |
        v
Capture / Demux
        |
        v
Encode / Parse
        |
        v
RTSP server layer
        |
        v
rtsp://host:port/mapping
        |
        +------> Client 1: playbin
        +------> Client 2: rtspsrc + depay + decode
        +------> Client 3: VLC / NVR / custom app

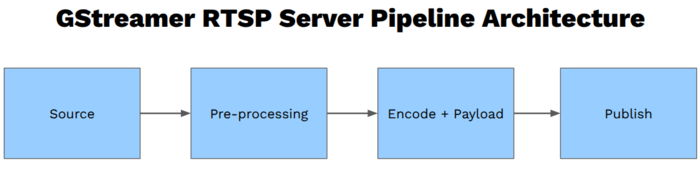

Server-side building blocks

A practical RTSP server path in GStreamer usually contains:

A source or demuxer such as v4l2src, filesrc, qtdemux, or an application source.
A pre-processing stage with elements such as videoconvert, videoscale, nvvideoconvert (NVIDIA Jetson specific).
An encoder or parser such as x264enc, hardware encoders, h264parse, or h265parse.
An RTSP-serving layer or publisher, which is either the upstream gst-rtsp-server library or RidgeRun's GstRtspSink (rtspsink element).
Optional transport features such as multicast, authentication, HTTP tunneling, or ONVIF integration.

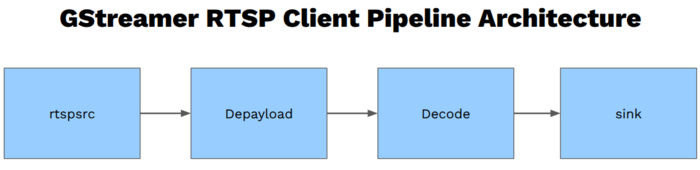

Client-side building blocks

On the playback side, a GStreamer RTSP client typically uses:

rtspsrc to open the RTSP session and expose RTP pads.
RTP management and jitter handling components.
One or more depayloaders such as rtph264depay, rtph265depay, or rtpmp4adepay.
Parsers and decoders such as h264parse, aacparse, avdec_h264, or hardware decoders.
Converters as required for the specific use-case.
Output sinks such as autovideosink and autoaudiosink.

The simple case can often be tested with playbin, while complex or low-latency cases usually benefit from explicit rtspsrc pipelines.

Publishing to another RTSP server

If GStreamer is acting as a sender into someone else's RTSP infrastructure rather than hosting the server itself, rtspclientsink may be the right primitive. That is a different design from exposing your own RTSP server endpoint.

Choosing an implementation path

Choosing the right RTSP implementation path
Path	Best when	Trade-off
`gst-rtsp-server` library	You need a custom application and want full control over mounts, session policy, and application logic	Requires code and ongoing ownership of the server application
GstRtspSink (rtspsink)	You want to expose one or more RTSP URLs directly from a pipeline with minimal glue code (fastest path)	Uses a RidgeRun plugin rather than only upstream components
Onvif Device Reference Design or Onvif device server	You need a device that behaves like an ONVIF camera or encoder, not just a stream endpoint	Adds a broader device stack and compliance work
GStreamer Daemon plus RTSP components	You want the media process separated from the control process in production deployments	Adds architecture complexity but improves maintainability

In practice, many RidgeRun projects start with GstRtspSink for fast iteration, move to a controlled application architecture with GStreamer Daemon when the product matures, and layer in ONVIF only when the device must integrate into camera and VMS ecosystems.

Key takeaways

A “GStreamer RTSP server” can mean either the upstream gst-rtsp-server library or RidgeRun's GstRtspSink element.
RTSP is still a strong fit for camera-style, embedded, and low-overhead streaming workflows.
RTSP and ONVIF are complementary, not competing, technologies.
For implementation details, the most actionable next pages are GStreamer RTSP Streaming/RTSP Server Setup and Pipeline Examples and GStreamer RTSP Streaming/RTSP Client Playback and Troubleshooting.
For commercial products and engineering support, start with GStreamer RTSP Streaming/Commercial RTSP Solutions and Low-Latency Services.

Frequently asked questions

What is a GStreamer RTSP server?: It is the server side of a GStreamer streaming system that exposes one or more media streams over RTSP so remote clients can connect and receive RTP media.
How do I enable an RTSP stream?: You need a pipeline that produces encoded media, an RTSP server layer that publishes it at a mount or mapping, and a client that connects to the resulting rtsp:// URL.
Where should I start if I need a commercial solution?: Start with GstRtspSink if you need a direct GStreamer-integrated RTSP server, then evaluate Onvif Device Reference Design, Onvif device server, and RidgeRun Professional Services if the project requires a broader product architecture.
What is the fastest way to publish a test RTSP stream from GStreamer?: GstRtspSink is usually the fastest path because it lets you expose an RTSP stream directly from a GStreamer pipeline.
What is the main GStreamer element for RTSP client playback?: rtspsrc is the main client-side source element. It negotiates the RTSP session and exposes RTP pads for the received streams.
Can I use RTSP directly in a web browser?: Usually not in a native way. Browser-native delivery typically favors WebRTC, MSE-based approaches, or HLS. RTSP is stronger for device, application, and NVR-style workflows than for direct browser playback.
What is the difference between rtspclientsink and rtspsink?: rtspclientsink publishes media to an external RTSP server. RidgeRun's rtspsink element in GstRtspSink hosts RTSP streams directly from the pipeline.
