Embedded Vision for Smart Cities
A technical reference for building embedded vision and Edge AI systems for smart cities, intelligent transportation, public safety, traffic monitoring, smart parking, and urban infrastructure management. It covers the reference architecture, supported platforms, RidgeRun software, and application patterns for processing video and sensor data directly at the edge. Design decisions prioritize low-latency analytics, efficient bandwidth usage, reliable operation, and scalable deployment across distributed urban environments.
Overview
Smart cities use cameras, sensors, edge computers, and intelligent software to understand what is happening across roads, intersections, public transportation systems, buildings, and critical infrastructure.
Embedded vision and Edge AI allow this information to be processed close to where it is generated. Instead of transmitting every raw stream to the cloud, edge systems can detect relevant events, generate metadata, record selected evidence, and send actionable information to central management platforms.
RidgeRun supports the development of production-ready smart city systems through camera and sensor integration, embedded Linux, GStreamer, hardware-accelerated video pipelines, Edge AI optimization, synchronized metadata, low-latency streaming, and remote device management.
Smart City Engineering Challenges
A smart city platform is a distributed embedded system. It must combine heterogeneous devices, real-time media, AI inference, networking, storage, security, and fleet operations without sacrificing reliability.
| Challenge | Engineering impact | RidgeRun contribution |
|---|---|---|
| Device integration | Cameras, radar, LiDAR, GPS, and environmental sensors expose different interfaces and timing models. | Linux drivers, V4L2, GStreamer capture, synchronization, and platform integration. |
| Real-time processing | Several HD or 4K streams may need concurrent preprocessing, inference, encoding, and recording. | Hardware acceleration, zero-copy pipelines, profiling, and multimedia optimization. |
| Edge AI constraints | Models must fit within limited power, memory, compute, and thermal budgets. | TensorRT and platform-specific optimization, quantization, and pipeline integration. |
| Network variability | Urban devices may operate over constrained, shared, or intermittent links. | Adaptive streaming, resilient transport, buffering, local recording, and reconnection logic. |
| Production scale | Large fleets require secure provisioning, observability, updates, and rollback. | Embedded Linux, OTA integration, logs, and deployment architecture. |

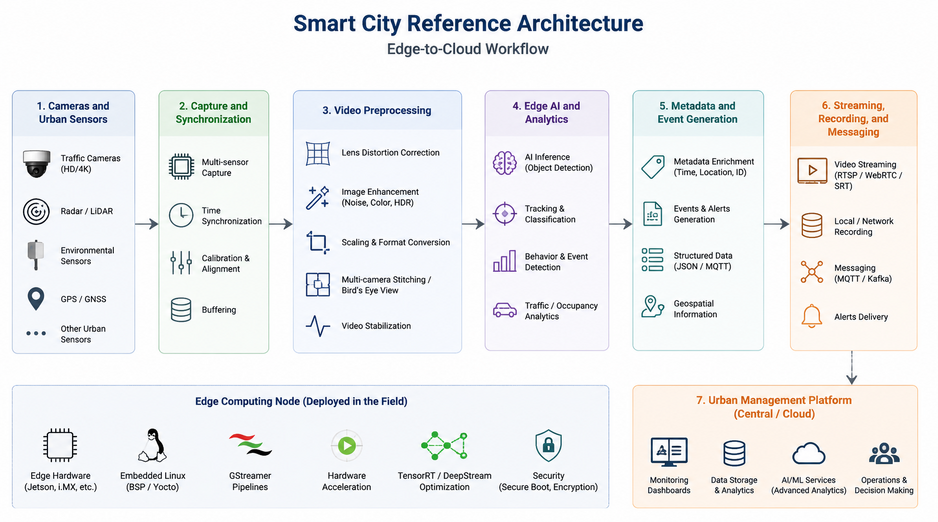

Reference System Architecture
A typical architecture places an edge computing node close to the cameras and sensors. The node performs acquisition, synchronization, image processing, AI inference, metadata generation, recording, and communications. A central urban platform receives only the video, alerts, and structured data required for operations or long-term analysis.
Embedded Vision Workflow
- Acquire: Capture synchronized video and sensor data using MIPI CSI-2, USB, GigE, RTSP, radar, LiDAR, GPS, V4L2, and custom interfaces. At this stage, timestamp quality and stable device drivers are fundamental.
- Enhance: Prepare images for visualization and inference through ISP processing, denoising, color correction, scaling, format conversion, lens correction, stabilization, perspective transformation, and multi-camera stitching.
- Analyze: Run AI and computer vision directly on the edge. Common tasks include detection, classification, segmentation, tracking, traffic-density estimation, illegal-parking detection, intrusion detection, and infrastructure anomaly detection.
- Contextualize: Associate detections with timestamps, camera identifiers, GPS coordinates, sensor measurements, object trajectories, bounding boxes, confidence values, and operational status.
- Stream and Record: Deliver selected video, alerts, and metadata through RTSP, RTP, WebRTC, SRT, MQTT, Kafka, local storage, or event-triggered clips. The system should remain useful even when cloud connectivity is degraded.
- Manage: Operate deployed devices through secure configuration, logs, application deployment, OTA updates, authentication, and fleet management.
Example: Intelligent Traffic Monitoring
Intelligent traffic monitoring is a representative smart city use case because it combines real-time video acquisition, Edge AI, object tracking, metadata generation, and communication with urban management platforms. The system analyzes roads and intersections to detect vehicles, cyclists, and pedestrians, measure traffic conditions, and generate actionable information without continuously transmitting every raw video stream to the cloud.
The following sections describe the system architecture, software components, processing workflow, and engineering requirements needed to implement the solution on embedded hardware.
Intelligent Traffic Monitoring Overview
An intelligent traffic monitoring system captures video from cameras installed near roads or intersections and processes it on an edge computing platform.
The system detects and tracks road users, extracts traffic metrics, generates synchronized metadata, and sends relevant events or summarized information to a central platform.
The solution combines five main subsystems:
- Video capture and synchronization: Acquisition from one or more roadside cameras.
- Edge AI and computer vision: Detection, classification, and tracking of vehicles, cyclists, and pedestrians.
- Traffic analytics: Vehicle counting, queue-length estimation, congestion detection, and turning-pattern analysis.
- Metadata and event management: Association of detections, timestamps, trajectories, and camera information.
- Connectivity and monitoring: Transmission of video, alerts, and analytics to an urban management platform.
Software Components
| Component | Role | Technology |
|---|---|---|
| Camera capture | Acquire synchronized video from one or more traffic cameras. | V4L2, GStreamer, MIPI CSI-2, USB or network cameras |
| Video preprocessing | Scale, correct, enhance, and prepare frames for inference. | GStreamer, hardware accelerators, CUDA or platform-specific processing |
| Traffic detection AI | Detect vehicles, cyclists, pedestrians, and other road users. | NVIDIA DeepStream, TensorRT, custom AI models |
| Multi-object tracking | Maintain object identities and trajectories across frames. | DeepStream trackers or custom tracking algorithms |
| Traffic analytics | Calculate counts, speed, queue length, congestion, and turning patterns. | Computer vision and application-specific analytics |
| Metadata generation | Associate detections, timestamps, camera IDs, and trajectories with video. | RidgeRun Metadata, SEI, OBU, MQTT or custom APIs |
| Video streaming | Transmit live or event-based video to operators. | GStreamer, RTSP, WebRTC, SRT or RTP |
| Local recording | Store video clips and events when required. | GStreamer recording pipelines and local storage |
| Urban platform integration | Send alerts and analytics to dashboards or traffic-management systems. | MQTT, REST APIs, Kafka or custom communication interfaces |
| Device management | Monitor, configure, and update deployed edge nodes. | Embedded Linux, OTA updates, logging and health monitoring |
Smart City Use Cases
The same reference architecture can be adapted to multiple urban applications by changing the sensor configuration, analytics, communications, and operational logic.
| Use case | Typical outcomes | Key capabilities |
|---|---|---|
| Intelligent traffic monitoring | Vehicle, cyclist, and pedestrian counts; queue length; congestion; turning analysis. | Detection, tracking, classification, metadata, and multi-camera processing. |
| Smart intersections | Occupancy, unsafe movement detection, blocked lanes, and traffic-signal inputs. | Low-latency analytics, sensor fusion, and edge messaging. |
| Public safety | Intrusion, crowd density, abandoned objects, PTZ automation, and event recording. | Video analytics, SmartSeek360, secure streaming, and metadata. |
| Smart parking | Space occupancy, restricted-zone violations, parking duration, and availability feeds. | Detection, perspective mapping, local analytics, and APIs. |
| Public transportation | Passenger counting, platform occupancy, vehicle arrival, and remote monitoring. | Multi-camera capture, analytics, recording, and streaming. |
| Infrastructure inspection | Road damage, cracks, missing signs, flooding, and vegetation encroachment. | High-resolution capture, AI inspection, and geotagged evidence. |
| Environmental monitoring | Smoke, fire, flood, visibility, waste accumulation, and air-quality context. | Camera analytics, sensor fusion, alerts, and local recording. |
| Situational awareness | Panoramic or top-down views that reduce blind spots and simplify monitoring. | Bird’s Eye View, stitching, and multi-camera synchronization. |
Technical Requirements and Engineering Needs
Building the system reliably requires addressing the following areas:
Camera Placement and Calibration
- Camera position, field of view, perspective, resolution, and lighting conditions directly affect analytics accuracy.
- Calibration may be required to map image coordinates to real-world road positions.
Real-Time Performance
- The platform must process multiple video streams while maintaining the required frame rate and inference latency.
- Hardware acceleration and zero-copy pipelines help reduce CPU usage and memory transfers.
AI Model Accuracy
Models must perform under changing urban conditions, including:
- Day and night.
- Rain and fog.
- Shadows and reflections.
- Partial occlusion.
- Different vehicle and pedestrian densities.
Object Tracking
Tracking must remain stable when objects overlap, change lanes, or temporarily disappear behind other vehicles.
Metadata Synchronization
- Detection and tracking results must remain synchronized with their corresponding video frames.
- This is important for event reconstruction, evidence recording, and multi-camera analysis.
Network Resilience
- The system should continue processing and recording locally during network interruptions.
- When connectivity returns, selected events or analytics can be synchronized with the central platform.
Security and Privacy
- Video streams, stored recordings, device access, and software updates must be protected.
- Privacy masking may also be required for faces, license plates, or restricted areas.
Production Deployment
A production deployment should include:
- Remote configuration.
- Health monitoring.
- Log collection.
- Secure provisioning.
- OTA updates.
- Rollback mechanisms.
- Long-duration stability testing.
- Thermal and power validation.
Recommended RidgeRun Resources
| Resource | Description |
|---|---|
| RidgeRun Smart Cities | Overview of RidgeRun’s embedded software solutions for smart city systems. |
| RidgeRun Linux Camera Drivers | Documentation for Linux and V4L2 camera drivers, capture interfaces, supported sensors, and embedded platforms. |
| GStreamer | Technical resources for developing multimedia capture, processing, encoding, recording, and streaming pipelines. |
| RidgeRun Development Suite | Collection of reusable multimedia and computer vision components for embedded system development and evaluation. |
| SmartSeek360 Microservices Demo | Smart PTZ system combining 360-degree video analytics, AI detection, automated PTZ control, and event recording. |
| RidgeRun Metadata | Tools for synchronizing timestamps, GPS data, detections, bounding boxes, telemetry, and sensor information with video streams. |
| RidgeRun Bird’s Eye View | Real-time multi-camera processing for generating top-down 360-degree views on embedded platforms. |
| RidgeRun Multimedia Streaming Solutions | Documentation for RTSP, WebRTC, RTP, Media over QUIC, ONVIF, bandwidth adaptation, and low-latency streaming. |
| RidgeRun Yocto Developer Guide | Technical guide for creating customized Yocto-based embedded Linux systems and BSP integrations. |
Build smart city embedded vision systems ready for real-world urban operations
From camera and sensor integration to Edge AI, low-latency streaming, metadata management, and secure deployment, RidgeRun helps smart city teams move from prototype to production with optimized embedded vision pipelines.
Contact Us to start your project.
FAQ
What is embedded vision for smart cities?
It uses cameras, edge processors, and computer vision software to analyze urban environments in real time for traffic, safety, parking, transportation, and infrastructure applications.
Why process smart city video at the edge?
Edge processing reduces latency and bandwidth consumption by transmitting selected events, metadata, alerts, or compressed video instead of every raw stream.
Which embedded platforms can be used?
NVIDIA Jetson, NXP i.MX, Qualcomm, x86 edge computers, and custom ARM platforms can be selected according to the workload, power, and environmental constraints.
How is AI metadata synchronized with video?
Metadata can be embedded in encoded video or transmitted through synchronized messaging systems using timestamps and camera identifiers.
Can systems operate without constant cloud connectivity?
Yes. Edge devices can continue capturing, analyzing, and recording locally, then synchronize selected information when connectivity returns.
How does RidgeRun support smart city development?
RidgeRun provides camera integration, embedded Linux, GStreamer pipelines, Edge AI optimization, metadata, streaming, and production deployment support.
