Embedded Vision for Medical and Healthcare
A technical reference for building embedded vision and Edge AI systems for medical devices, diagnostic and surgical imaging, patient monitoring, teleoperation, and wound/tissue analysis; running on embedded hardware at the edge. It covers the reference architecture, supported platforms, RidgeRun software building blocks, and application patterns, with a wound imaging example. Design decisions prioritize color-accurate imaging, low latency, and patient-data privacy.
Overview
Embedded vision and Edge AI let medical devices capture, process, and analyze visual data directly on the device; at the bedside or inside the instrument; instead of depending on the cloud. Processing at the edge keeps latency low, keeps sensitive patient data on-device, and lets clinicians receive real-time guidance where care happens. Common application areas include:
- Diagnostic and surgical imaging: optical devices, and surgical visualization with color-accurate, enhanced imagery.
- AI-assisted analysis: segmentation, measurement, and tissue or lesion classification and detection.
- Patient monitoring and documentation: capturing, tracking, and comparing findings over time.
- Teleoperation and telemedicine: low-latency streaming for remote consultation and remote-assisted procedures.
- RidgeRun's role: is to turn medical-grade embedded hardware into production-ready perception, imaging, and AI pipelines from camera and sensor bring-up to inference, de-identification, streaming, and platform optimization, while supporting compliance best practices.
Medical Challenges RidgeRun Helps Solve
- Real-time, low latency: optimizing pipelines for the responsiveness that teleoperation and live intervention demand.
- Patient data privacy and security: on-device de-identification/redaction, encryption, and OS-level security for protected health information (PHI).
- Sensor and device integration: unifying cameras, probes, and depth sensors into coherent pipelines.
- Connected and remote care: secure remote monitoring, telemedicine streaming, and OTA/delta updates for fielded devices.
- Regulated development: accelerating time-to-market with proven embedded expertise while maintaining compliance-supportive practices (support for, not a guarantee of, certification).
System Architecture

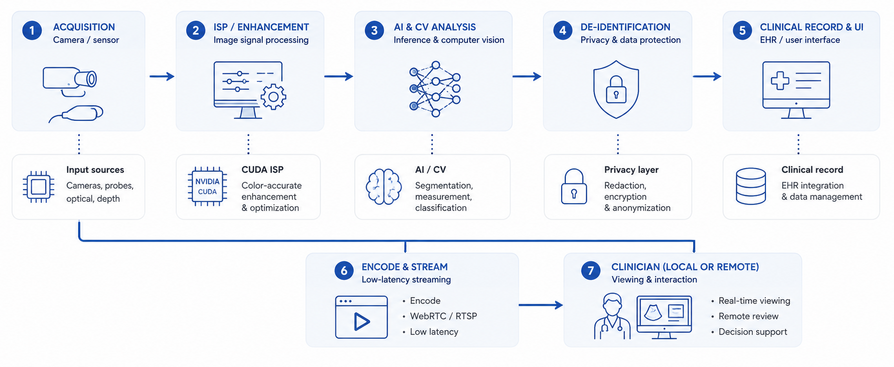

Most industrial vision systems follow the same canonical data flow, from acquisition through to an action on the line:
Example (Wound Imaging)
Wound imaging is a strong representative case because it exercises the full pipeline at once: it depends on faithful color for tissue assessment, on calibrated measurement for tracking healing over time, and on strict handling of patient data. The sections that follow describe its architecture, components, workflow, and the engineering requirements needed to reproduce it on real hardware.
System Overview
Wound imaging is the capture and visual analysis of wounds to document, monitor, and analyze them over time. Doing this with embedded vision and Edge AI, directly on the device rather than in the cloud; addresses three needs at once: patient privacy (sensitive images stay on-device), low latency for point-of-care use, and consistent, repeatable measurement across visits. The system couples five subsystems:
- Capture and imaging: color-accurate acquisition of the wound, with a scale reference for measurement.
- AI and computer-vision analysis: wound segmentation, dimensional measurement, tissue classification, and color analysis.
- Privacy and security: on-device de-identification of incidental identifying information, plus encryption and OS-level protection.
- Clinical UI and records: capture guidance, annotation, and a per-patient healing timeline.
- Connectivity and telemedicine: secure, low-latency streaming to share findings with remote clinicians.
System Architecture

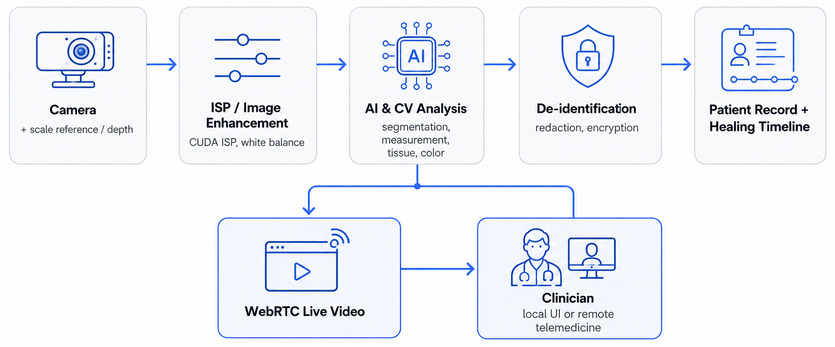

Capture flows through image enhancement and AI analysis; results are de-identified and attached to the patient record, and a separate low-latency branch streams live video for local or remote review.
Software Components
| Component | Role | Technology |
|---|---|---|
| Capture & imaging | Color-accurate acquisition and image enhancement of the wound | Camera + GStreamer + CUDA ISP |
| Wound analysis (AI) | Segment the wound and classify tissue types | NVIDIA DeepStream + custom models (TensorRT) |
| Measurement | Compute wound area and dimensions (and volume with depth) | Computer vision on calibrated images / depth data |
| Color analysis | Assess tissue and peri-wound color | Colorimetric / histogram analysis |
| Privacy & de-identification | Remove incidental identifying information from images/video | Object & Face Redaction |
| Clinical UI & records | Capture guidance, annotation, patient timeline | GUI + patient management application |
| Telemedicine streaming | Share live or recorded wound video with remote clinicians | GStreamer + WebRTC (GstWebRTC) |
| Security | Protect patient data and enable safe updates |
Technical Requirements and Engineering Needs
Building this system reliably requires addressing the following areas.
Compute platform
An embedded GPU platform able to run AI inference, color CV, de-identification, and video encoding concurrently in real time; NVIDIA Jetson (Orin or Thor) or the medical-grade NVIDIA IGX platform, with a hardware encoder (NVENC) for telemedicine streaming. For ultra-low-latency clinical imaging, NVIDIA Holoscan is an option; for wound documentation and monitoring, a DeepStream-based pipeline on Jetson is typically sufficient.
Color-accurate, consistent imaging
- White-balance and ISP tuning for faithful color reproduction; color is diagnostically meaningful in wound assessment (tissue color, erythema).
- Standardized, consistent lighting and capture conditions — essential so that images are comparable across visits when monitoring healing.
Measurement calibration (critical)
To report wound size in real units (cm², mm) rather than pixels, the system needs a scale reference: a fiducial marker of known size placed in the frame, or a depth/3D sensor for area and volume. A repeatable capture distance and angle (or pose normalization) is important for valid longitudinal comparison. Without calibration, measurements are not comparable between captures.
AI wound analysis
- Custom models for wound segmentation and tissue classification (granulation, slough, necrotic, epithelial), including dataset collection, labeling, training, and validation.
- TensorRT optimization (FP16/INT8) for low-latency inference; INT8 requires a representative calibration set.
- Dataset quality and clinical validation across diverse skin tones, wound types, and anatomical locations are essential for trustworthy results.
Patient data privacy and security
Wound images are protected health information. The system should keep data on-device wherever possible, apply de-identification/redaction of incidental identifiers, and use encryption at rest and in transit, OS-level security and privacy features, and secure OTA updates. Language and practices here should be compliance-supportive; they support, but do not by themselves guarantee, certification under medical device regulations.
Clinical UI and records
- Capture guidance, annotation and measurement overlays, and a per-patient healing timeline.
- Integration points for electronic health records (EHR) were required.
Telemedicine and streaming
Low-latency, secure video (WebRTC / Media over QUIC) for remote consultation, with bandwidth-adaptive behavior.
Latency and responsiveness
A defined latency budget so that capture-to-result is responsive enough for point-of-care use, and live-feed glass-to-glass latency is low enough for effective remote review.
Robustness
Reliable behavior across diverse wounds, skin tones, anatomical locations, lighting, and motion; the system should flag low-confidence results rather than report them silently.
Deployment and lifecycle
- A reproducible embedded image (Yocto BSP) and/or containerized processes, secure updates, and traceability/auditability appropriate for medical devices.
- Product security such as full disk encryption, secure boot, over-the-air updates, and trusted application execution.
Imaging and Analysis Pipeline Detail
The camera feed is captured by GStreamer and enhanced for color accuracy (PVA ISP, white balance). A DeepStream inference stage segments the wound and classifies tissue; a measurement step converts the calibrated segmentation into real-world dimensions, and a color routine performs histogram/colorimetric analysis on the wound region. Results are de-identified and written to the patient record.
The same capture pipeline can be split with a tee: one branch performs analysis, the other encodes a stream delivered to a clinician over WebRTC. RidgeRun's GStreamer tooling (GStreamer Daemon and GstInterpipe) can manage these as independent, runtime-reconfigurable pipelines, and GstShark can profile end-to-end latency and bottlenecks.
From Demo to Clinical Use Cases
The same wound imaging architecture applies across real clinical scenarios:
- Chronic wound care: diabetic foot ulcers, pressure injuries (bedsores), and venous leg ulcers, where longitudinal measurement and monitoring drive treatment decisions.
- Post-surgical wound monitoring: tracking healing and surfacing early signs of complications such as infection or dehiscence.
- Burn assessment: estimating affected area and, with depth, severity.
- Dermatology: documenting and tracking lesions over time.
- Home care and telehealth: remote wound monitoring with clinician review, reducing in-person visits.
- Hospital and clinic documentation: standardized records and reduced manual measurement error.
- Moving from demo to clinical deployment typically adds: clinical validation, a regulatory pathway (compliance-supportive engineering), EHR integration, multi-site consistency, and ruggedized or handheld hardware.
RidgeRun Technologies
| Need | Technology |
|---|---|
| On-device AI on Jetson / IGX | DeepStream/TensorRT integration and custom model deployment |
| Ultra-low-latency medical imaging | NVIDIA Holoscan expertise · Holoscan on Jetson |
| Color-accurate imaging / preprocessing | CUDA ISP by PVA ISP |
| Patient-privacy de-identification | Object & Face Redaction |
| Telemedicine video from GStreamer | GStreamer Browsersink / GStreamer Media over Quic |
| Pipeline orchestration / profiling | GStreamer Daemon + GstInterpipe · GstShark |
| Computer vision and model optimization | Computer Vision Solutions · RidgeRun.ai |
References and Resources
- RidgeRun — Medical and Healthcare
- RidgeRun — NVIDIA Holoscan and the Streaming AI Pipeline Landscape (deep dive)
- RidgeRun Developer Wiki · CUDA ISP by PVA ISP · GStreamer Daemon · GstInterpipe · GstShark · R2Inference
- Object & Face Redaction · Streaming Solutions · Computer Vision Solutions · RidgeRun.ai
- NVIDIA DeepStream SDK · NVIDIA Holoscan SDK
Build medical embedded vision systems ready for real-world clinical workflows.
From camera and sensor bring-up to Edge AI, de-identification, low-latency streaming, and secure deployment, RidgeRun helps medical device teams move from prototype to production with optimized embedded vision pipelines.
Contact Us to start your project.
FAQ
What is embedded vision in medical and healthcare systems?
Embedded vision in medical and healthcare systems refers to the use of cameras, sensors, embedded hardware, and software pipelines to capture, process, analyze, stream, and store visual data directly at the edge. This enables real-time imaging workflows for medical devices, diagnostic support, surgical imaging, patient monitoring, teleoperation, and wound or tissue analysis without depending entirely on cloud processing.
How does Edge AI support medical imaging applications?
Edge AI allows AI models to run locally on embedded platforms close to the medical device or imaging system. This helps reduce latency, keep sensitive patient data local, improve reliability, and support real-time analysis for applications such as wound assessment, tissue classification, image enhancement, object detection, segmentation, and clinical workflow assistance.
Can RidgeRun help build medical imaging pipelines?
Yes. RidgeRun can help design and optimize embedded medical imaging pipelines that include camera acquisition, image processing, AI inference, low-latency streaming, metadata handling, recording, and secure edge deployment. These pipelines can be adapted for medical devices, diagnostic imaging systems, surgical visualization, patient monitoring, and connected healthcare platforms.
What technologies are commonly used in medical embedded vision systems?
Medical embedded vision systems may include GStreamer for video pipelines, NVIDIA Jetson platforms for edge processing, CUDA for hardware acceleration, TensorRT for optimized AI inference, DeepStream for scalable perception workflows, WebRTC for low-latency streaming, and secure application layers for visualization, monitoring, and data management.
Can RidgeRun help reduce latency in medical video pipelines?
Yes. RidgeRun specializes in low-latency embedded video and AI pipelines using GStreamer, hardware acceleration, platform-specific optimization, and efficient video streaming technologies. This is important for medical applications where visualization, inference, and system response must happen in real time or near real time.
Does RidgeRun support camera and sensor integration for medical devices?
Yes. RidgeRun can help integrate cameras, image sensors, and other data sources into embedded medical systems. This includes camera bring-up, driver development, synchronization, image quality tuning, sensor data handling, and integration with edge AI or video processing workflows.
Can RidgeRun help with secure medical video streaming?
Yes. RidgeRun supports secure and low-latency video streaming architectures for medical and healthcare applications. This can include real-time visualization, remote monitoring, teleoperation, browser-based viewing, and controlled access to video streams while keeping privacy and system reliability in mind.
How can embedded vision help with wound and tissue analysis?
Embedded vision can support wound and tissue analysis by capturing high-quality images, enhancing visual details, detecting regions of interest, running AI inference at the edge, and organizing image or metadata outputs for review. These systems can help standardize visual assessment workflows and reduce the dependency on manual image handling.
Can RidgeRun help optimize AI models for medical edge devices?
Yes. RidgeRun can help optimize AI models for embedded platforms using tools such as TensorRT, CUDA, and platform-specific acceleration. This can improve inference speed, reduce resource usage, and make AI workloads more suitable for real-time medical and healthcare applications at the edge.
Why is edge processing important for medical and healthcare systems?
Edge processing is important because medical systems often require low latency, high reliability, local data handling, and controlled privacy. Processing video and AI workloads directly on embedded hardware can reduce network dependency, improve response times, and help keep sensitive patient data closer to the device.
