Embedded Vision for Industrial Automation
A technical reference for building embedded vision and Edge AI systems for industrial automation, automated inspection, defect detection, vision-guided robotics, process monitoring, and video analytics; running on embedded hardware at the edge. It covers the reference architecture, supported platforms, RidgeRun software building blocks, and application patterns, with a vision-guided pick-and-place example. Pipelines are validated GStreamer command-line examples that you adapt to your target hardware and sensor.
Overview
Embedded vision and Edge AI let industrial systems capture, process, and act on visual data directly on the machine, on the line, on the robot, or inside the instrument; instead of depending on the cloud. Processing at the edge keeps latency low and deterministic, keeps data local, and lets systems operate reliably on the factory floor. Common application areas include:
- Automated visual inspection and quality control.
- Vision-guided robotics and pick-and-place.
- Process monitoring and video analytics.
- Sensor fusion and measurement.
RidgeRun's role is to turn powerful embedded hardware into production-ready perception, video, and AI pipelines — from camera and sensor bring-up to inference, streaming, and platform optimization.
Industrial Automation Challenges RidgeRun Helps Solve
- Image quality in harsh environments: enhancing imagery under difficult lighting, motion, dust, or glare.
- Real-time, deterministic latency: optimizing pipelines so perception and decisions meet the timing the process demands.
- Multi-camera and sensor integration: unifying GigE Vision, USB3 Vision, MIPI CSI-2, and other sources into coherent pipelines.
- Reliable AI inference at the edge: deploying and optimizing models on embedded GPUs and accelerators.
- Robust production pipelines:fault isolation, runtime reconfiguration, and stable long-running operation.
- Integration with line control: bridging vision results to PLCs and Industry 4.0 systems.
- Time-to-market: accelerating development with proven embedded and GStreamer expertise.
System Architecture

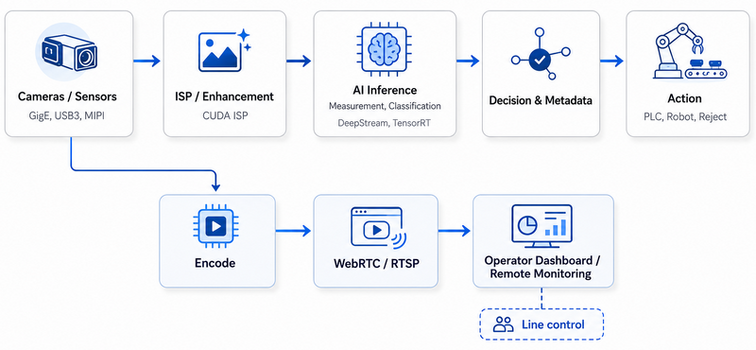

Most industrial vision systems follow the same canonical data flow, from acquisition through to an action on the line:
Working Example (Robotic Pick-and-Place)
The rest of this document grounds these principles in a concrete, end-to-end reference implementation. It takes one of the application areas introduced above — vision-guided robotics and pick-and-place — and follows it through every layer of the architecture: image acquisition, on-device perception, decision and messaging, and action on a physical robot. The system was built and validated as a demo in which a robotic arm picks user-selected pieces from a work area; while the demo uses LEGO pieces, every design decision — from camera-to-robot calibration to low-latency messaging — maps directly to industrial pick-and-place and defect-rejection deployments. The sections that follow describe its architecture, software components, workflow, and the engineering requirements needed to reproduce it on real hardware.
Technical Reference and Engineering Requirements
A reference implementation of an embedded vision and Edge AI system in which a robotic arm picks user-selected LEGO pieces from a work area. It combines NVIDIA DeepStream perception, computer-vision color analysis, LeRobot-based arm control, Redis messaging, and WebRTC streaming to a web application. Although the demo uses LEGO pieces, the architecture generalizes directly to industrial pick-and-place and defect-rejection systems.
A user selects a LEGO piece in a web interface; an AI and computer-vision pipeline locates that piece in the camera's field of view; and a robotic arm picks it and returns it on command. The system couples four subsystems: Perception runs on NVIDIA DeepStream: a custom AI classification model identifies the LEGO piece shape, and a computer-vision routine (histogram analysis) identifies its color.
Robot control drives the arm through the LeRobot API, receiving the target piece location and executing the pick. Messaging uses Redis as the communication backbone between all processes, keeping them decoupled and message-driven. Video is streamed from GStreamer to the web application over WebRTC for a low-latency live feed. The web application lets the user select a piece, watch the live camera feed, review demo activity, and trigger the Pick and Release operations.
System Architecture

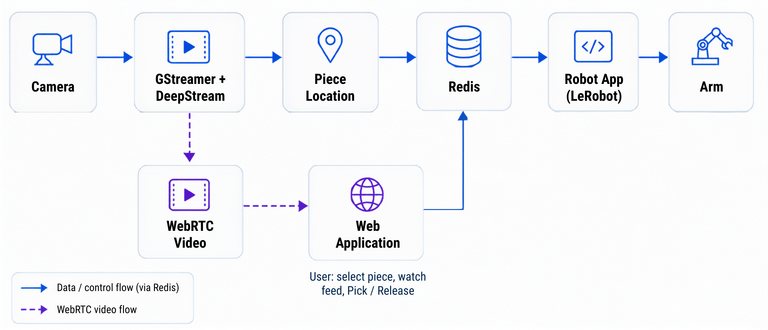

The system is process-oriented: independent applications (web, perception, robot) exchange messages through Redis, while video flows separately over WebRTC.
Software Components
| Component | Role | Technology |
|---|---|---|
| Web application | Piece selection, live video, activity log, and Pick/Release control | Web frontend; WebRTC client; Redis-backed commands |
| Perception (shape) | Detect and classify the selected LEGO piece and locate it in the work area | NVIDIA DeepStream + custom AI classification model (TensorRT) |
| Perception (color) | Confirm the piece color | Computer vision: histogram analysis (e.g., HSV histogram) |
| Robot control | Receive the target location, plan and execute pick/release | LeRobot API; arm motion and gripper control |
| Messaging / IPC | Decoupled communication between the web, perception, and robot processes | Redis (publish/subscribe and key-value) |
| Video transport | Low-latency live camera feed to the browser | RidgeRun's GStreamer Browsersink |
Workflow
The operational sequence, with the underlying technical events:
- Selection: The user selects a LEGO piece (shape and color) from the web menu. The selection is published to Redis as the active target.
- Pick request: The user clicks Pick. The web app publishes a pick command, with the target piece descriptor, to Redis.
- Detection and localization: The DeepStream application detects pieces in the work area, matches the one the user selected (shape via the classification model, color via histogram analysis), computes its location, and publishes the target coordinates to Redis.
- Pick execution: The robot application consumes the coordinates, transforms them into robot/world coordinates, and commands the arm through LeRobot to move to the grasp pose and pick the piece.
- Release: The user clicks Release; the robot returns the piece to the work area.
- Ready: The system returns to idle, ready for the next selection and pick request.
Throughout, the live camera feed streams to the web app over WebRTC, and demo status and activity are reflected in the UI through Redis.
Technical Requirements
Compute platform
An embedded GPU platform able to run DeepStream inference, Redis, and WebRTC encoding concurrently in real time; NVIDIA Jetson (Orin for mainstream workloads; Jetson Thor for higher-throughput Physical AI). A hardware video encoder (NVENC) is needed for efficient WebRTC streaming.
Camera and imaging
- A camera with a stable mount and a clear, consistent view of the entire work area.
- Controlled, consistent lighting. Both color (histogram) detection and shape classification degrade under variable lighting, glare, or shadows.
- Resolution and frame rate adequate for reliable detection and responsive visual feedback.
Camera-to-robot calibration
Detections are produced in image (pixel) space, but the arm operates in physical (robot) coordinates. The system therefore needs:
- Hand-eye calibration and a pixel-to-world coordinate transform (camera intrinsics, extrinsics, and a work-plane homography) to convert a detected piece location into an accurate grasp pose.
- Calibration stability over time; mechanical drift or any camera movement requires re-calibration
AI shape detection
- A custom classification model trained on the target pieces, including dataset collection, labeling, training, and validation.
- TensorRT optimization for low-latency inference inside DeepStream.
Color detection
Histogram analysis (for example in the HSV color space) applied to the detected piece's region of interest, with thresholds tuned for the target palette and the installed lighting.
Robot control and motion
- Integration through the LeRobot API: motion planning to the grasp pose, gripper actuation, and a safe return.
- Collision-free motion within the work area and a defined home/idle pose.
- A grasp strategy appropriate to the piece geometry.
System integration and messaging
- Redis as the message bus, with a clear message schema/topics for selection, pick/release commands, target coordinates, and status.
- Process lifecycle management, reconnection, and error handling (piece not found, unreachable pose, grasp failure).
Video and latency
- WebRTC for low-latency live video to the browser, produced by RidgeRun's GStreamer Browsersink
- A defined latency budget: the selection → detection → coordinate-publish → motion-start path should feel responsive, and the live-feed glass-to-glass latency should be low enough for effective monitoring.
Robustness and safety
- Handling of edge cases: multiple candidate pieces, partial occlusion, no match, or ambiguous color.
- Robot safety: motion limits, emergency stop, and safe behavior on faults.
From Demo to Production: Target Use Cases
The demo demonstrates two general industrial patterns:
- Defect / anomaly rejection — an arm with a camera on a conveyor identifies items that show anomalies or differ from a target, picks them, and removes them from the process.
- Sorting / assembly — an arm picks pieces and sorts or assembles them into a predefined arrangement or shape.
Real-world applications that fit these patterns:
- Food and beverage: removing bruised fruit, broken or underfilled packages, or contaminated items from a line.
- Pharmaceuticals: removing tablets, capsules, or blister packs with defects, wrong color, missing labels, or damaged packaging.
- Electronics manufacturing: identifying PCBs, connectors, chips, or soldered joints with visible defects before final assembly.
- Automotive manufacturing: detecting scratched, bent, misshapen, or misoriented parts on a conveyor before assembly stations.
- Packaging and logistics: rejecting boxes, bottles, cans, or pouches with damaged labels, wrong barcodes, dents, leaks, or incorrect orientation.
- Recycling facilities: removing non-target materials (plastic from paper streams, metal from plastic streams) or contaminated waste.
Moving from demo to production typically adds: industrial cameras (GigE Vision / USB3 Vision), conveyor synchronization and triggering, higher throughput and multi-object handling, ruggedized hardware, integration with PLC/line control, and in regulated sectors—compliance-supportive engineering practices.
RidgeRun Technologies
The demo's needs map directly to production-ready RidgeRun technologies:
| Need | Technology |
|---|---|
| Perception on NVIDIA hardware | DeepStream/TensorRT integration and custom model deployment |
| WebRTC video from GStreamer | GstWebRTC Browser sink |
| Pipeline orchestration | GStreamer Daemon + GstInterpipe |
| Latency and bottleneck profiling | GstShark |
| Image quality / preprocessing | RidgeRun Computer Vision Services |
| Computer vision and model optimization | Computer Vision Solutions · RidgeRun.ai |
References and Resources
- RidgeRun Developer Wiki
- GStreamer Daemon · GstInterpipe · GstShark
- RidgeRun Streaming Solutions · Computer Vision Solutions
- NVIDIA DeepStream SDK
- Redis
Seen in Action at Automate 2026
This isn't just theory. We brought the full pipeline to Automate 2026, where we demoed it live at Arbor Solutions' booth, one of our hardware partners for edge AI hardware integration; running on their NVIDIA® Jetson AGX Thor™ board.

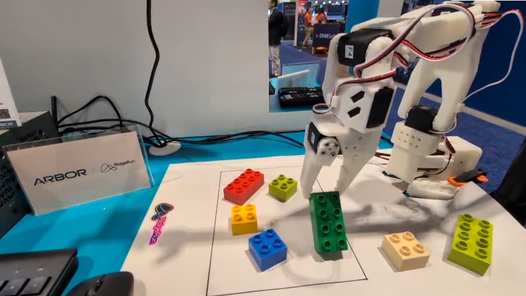

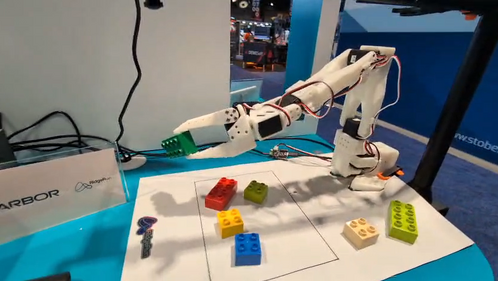

The demo was a fully interactive pick-and-place system: a visitor selects a LEGO piece from a web-based application, hits Pick, and a robotic arm locates and picks that exact piece from the work area, all driven by embedded vision at the edge, with no cloud in the loop.
Under the hood, it shows the same building blocks we deploy in production:
- NVIDIA DeepStream application performing shape detection with a custom AI classification model and color detection using computer vision (histogram analysis).
- Robot control via the LeRobot API, receiving the target piece location and executing the pick.
- REDIS orchestrating communication between the vision, robot, and web processes.
- GStreamer-to-WebRTC streaming the live camera feed straight into the browser, so the user watches the operation in real time.
FAQ
What is embedded vision in industrial automation?
Embedded vision in industrial automation refers to systems that use cameras, sensors, embedded hardware, and software pipelines to capture, process, and analyze visual data directly at the edge. This enables real-time inspection, monitoring, robotics, defect detection, and process control without depending entirely on cloud processing.
How does Edge AI help industrial automation systems?
Edge AI allows AI models to run locally on embedded platforms, close to the machine, robot, or production line. This helps reduce latency, keep data local, improve reliability, and support real-time decisions for applications such as quality inspection, anomaly detection, robotic guidance, and video analytics.
Can RidgeRun help build vision-guided robotics systems?
Yes. RidgeRun supports vision-guided robotics systems such as robotic pick-and-place, sorting, assembly, and defect rejection. These systems can combine camera acquisition, AI-based detection, computer vision analysis, robot control, low-latency video streaming, and message-driven coordination between applications.
What technologies are used in the industrial automation reference architecture?
The reference architecture includes NVIDIA DeepStream for perception, TensorRT for optimized AI inference, computer vision routines for color analysis, Redis for messaging, LeRobot for robotic arm control, GStreamer for video pipelines, and WebRTC for low-latency live video streaming to a web application.
Can RidgeRun help optimize industrial vision pipelines for low latency?
Yes. RidgeRun specializes in real-time embedded video and AI pipelines using GStreamer, hardware acceleration, DeepStream, TensorRT, WebRTC, and platform-specific optimizations. This is important for applications where perception, decision-making, and machine response must happen within strict timing requirements.
Does RidgeRun support multi-camera and sensor integration?
Yes. RidgeRun can help integrate cameras and sensors such as GigE Vision, USB3 Vision, MIPI CSI-2 cameras, LiDAR, IMUs, and other industrial data sources into coherent embedded pipelines. This is useful for inspection systems, robotics, sensor fusion, measurement, and process monitoring.
Can RidgeRun help with camera-to-robot calibration?
Yes. Vision-guided robotics requires converting detections from image space into physical robot coordinates. RidgeRun can help with camera intrinsics, extrinsics, work-plane homography, hand-eye calibration, and the software integration needed to publish accurate target coordinates to the robot control system.
For direct inquiries, please refer to the contact information available on our Contact page. Alternatively, you may complete and submit the form provided at the same link. We will respond to your request at our earliest opportunity.
Links to RidgeRun Resources and RidgeRun Artificial Intelligence Solutions can be found in the footer below.
