Optical Flow Fundamentals

Optical flow is a computer vision technique used to estimate the apparent motion of image features between consecutive frames of a video sequence. By analyzing how pixels move from one frame to the next, optical flow provides information about the relative motion of objects and the camera.

The fundamental assumption behind optical flow is the brightness constancy constraint, which states that the intensity of a point remains approximately constant as it moves between frames. If a pixel located at $(x, y)$ at time $t$ moves by $(u, v)$ during a time interval $Δ t$ , then:

$I (x, y, t) = I (x + u, y + v, t + Δ t)$

Assuming small displacements and applying a first-order Taylor approximation leads to the optical flow constraint equation:

$I_{x} u + I_{y} v + I_{t} = 0$

where:

$I_{x}$ and $I_{y}$ are the image intensity gradients.
$I_{t}$ is the temporal intensity variation.
$u$ and $v$ represent the horizontal and vertical motion components.

Algorithms such as Lucas-Kanade use this constraint to track feature points across consecutive frames and estimate their motion vectors.

Optical Flow for Video Stabilization

In Digital Image Stabilization (DIS), optical flow is used to estimate camera motion directly from the video stream. First, a set of feature points is detected and tracked between consecutive frames using an optical flow algorithm. This produces a collection of point correspondences that describe how image features move over time.

These local motion estimates are then used to compute a global motion model. A common approach is to estimate a homography, represented by a 3×3 projective transformation matrix:

$H = [\begin{matrix} h_{11} & h_{12} & h_{13} \\ h_{21} & h_{22} & h_{23} \\ h_{31} & h_{32} & h_{33} \end{matrix}]$

The homography describes how points in one frame map to points in the next frame and can model translation, rotation, scaling, shearing, and perspective effects. Given a point $𝐩$ in homogeneous coordinates, its transformed position is obtained as:

$𝐩^{'} = H 𝐩$

By estimating a homography for each pair of consecutive frames, the stabilization algorithm recovers the camera trajectory throughout the video. This trajectory is then smoothed to remove high-frequency shake while preserving intentional motion. Finally, the inverse correction is applied to each frame through image warping, producing a stabilized video sequence.

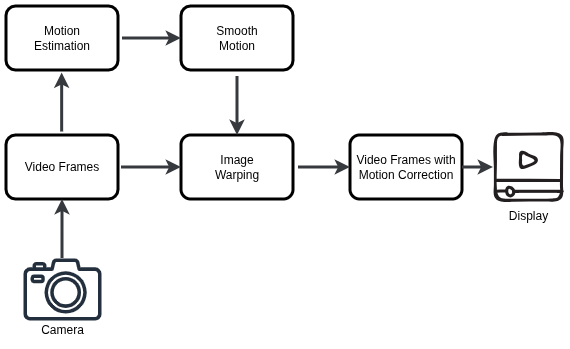

Stabilization Pipeline

Digital video stabilization estimates camera motion directly from the video frames. It analyzes consecutive frames with an optical-flow backend, estimates the frame-to-frame homography, smooths the transformation sequence, and warps the delayed output frame to reduce unwanted motion.

Motion estimation

The digital stabilizer estimates motion using visual information in the image. The optical-flow backend tracks image features between consecutive frames and computes a 3x3 homography that represents the apparent frame-to-frame camera motion.

The selected optical-flow method can usually be tuned through parameters that control feature detection, feature tracking, homography estimation, and validation.

Temporal buffering and synchronization

The video stream is the time reference for the digital stabilizer: each new frame is compared against the optical-flow backend's previous-frame state.

However, the stabilizer still uses internal buffering. Since smoothing is computed over a temporal window, the pipeline keeps delayed frame and homography buffers internally. A common implementation uses a frame queue for the delayed output frames and a larger transformation window for smoothing the estimated motion. The homography window can be initialized with identity matrices, which lets the pipeline produce output while the temporal window is being filled.

Because of this design, the output frame usually corresponds to a delayed frame from the internal queue, not necessarily the most recent input frame. This delay allows the smoothing stage to use past and future-relative transformations around the stabilized frame, producing a smoother result than an immediate frame-by-frame correction.

Smooth motion

After each homography is estimated, it is pushed into the stabilizer's temporal matrix window. The selected smoothing backend receives this window and produces a corrected 3x3 transformation matrix. The default configuration uses Gaussian smoothing, which smooths a centered sequence of transformation matrices to reduce high-frequency shake while preserving slower intentional camera motion.

The amount of temporal context is controlled by the smoothing window size. A larger smoothing window can produce steadier footage, but it also increases the number of internally delayed frames and can make the output less responsive to intentional camera movement. A smaller window reduces latency and follows camera motion more closely, but it may leave more residual shake.

Image warping

The last stage applies the smoothed homography to the delayed frame using the selected transform backend. This backend maps pixels from the input frame to the stabilized output frame according to the corrected 3x3 transformation matrix.

Warping can expose invalid borders because stabilization shifts, rotates, or scales the image content. To hide these borders, digital stabilization commonly uses a crop margin. The crop margin defines how much the image can be scaled/cropped to preserve valid output bounds after the transformation.

The geometric transform stage can be implemented with different processing backends depending on the target platform, performance requirements, and available acceleration.

❯
